Attivo BOTsink SAML Integration
This document explains how to implement Monosign with Attivo Network’s BOTsink application. It covers Single Sign-On. Before you continue, it is better to start with Attivo Network BOTsink ’s Single Sign-On internal SAML documentation page.
You can find that document in SAML configuration page.
📑 Instructions
This documentation contains 4 main steps for integration.
Creating an Application on Monosign
Configuration Single Sign-On for Attivo BOTsink
Assign a user to the Attivo BOTsink application
Sign In Test
1- Creating an Application on Monosign

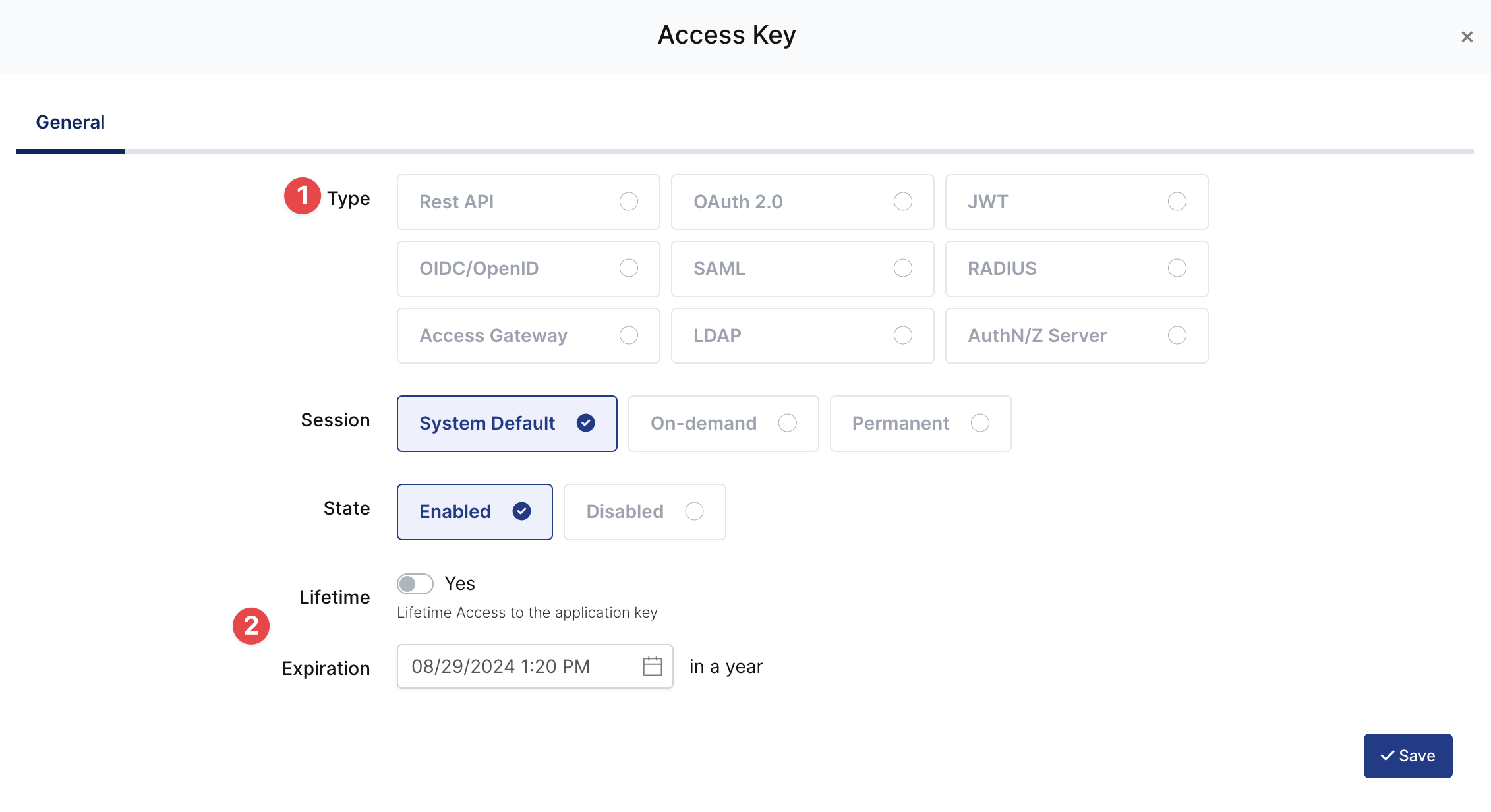

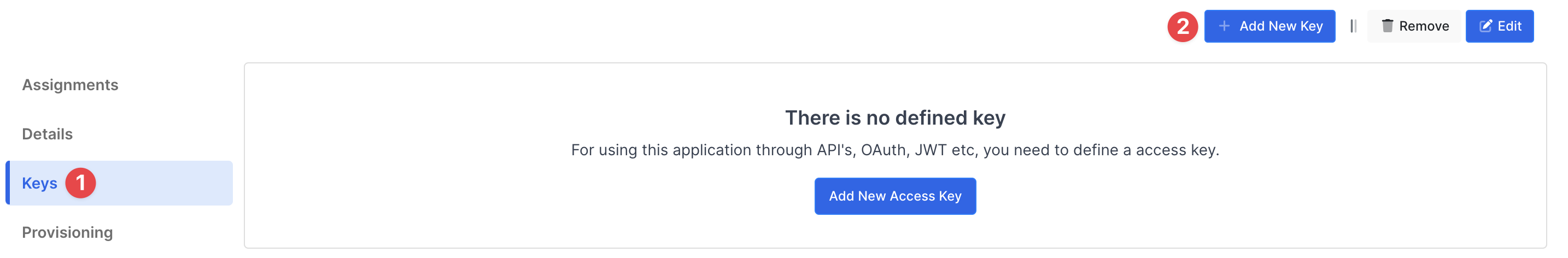

Create application on Monosign and configure your access policy. Once you create, click “Keys” and add a new Access Key for SAML Key for access.
This information will be necessary during the configuration of the Attivo BOTsink application.
![](../__attachments/141885441/CleanShot%202023-08-16%20at%2021.34.31@2x-20230816-183515.png?inst-v=866e9140-3da7-430a-a281-7dc8294ac19e)
![](../__attachments/141885441/CleanShot%202023-08-29%20at%2013.20.55@2x-20230829-102118.png?inst-v=866e9140-3da7-430a-a281-7dc8294ac19e)
Property | Value | Options |
---|---|---|
Key Type | SAML | Rest API, OAuth 2.0, JWT, OIDC/OpenID, SAML, RADIUS, Access Gateway, LDAP, AuthN/Z Server |
Expiration | Lifetime | Lifetime or Specific Date/Time - By Default Lifetime is Enabled. |
Configuration details for the Attivo BOTsink application are provided as follows:

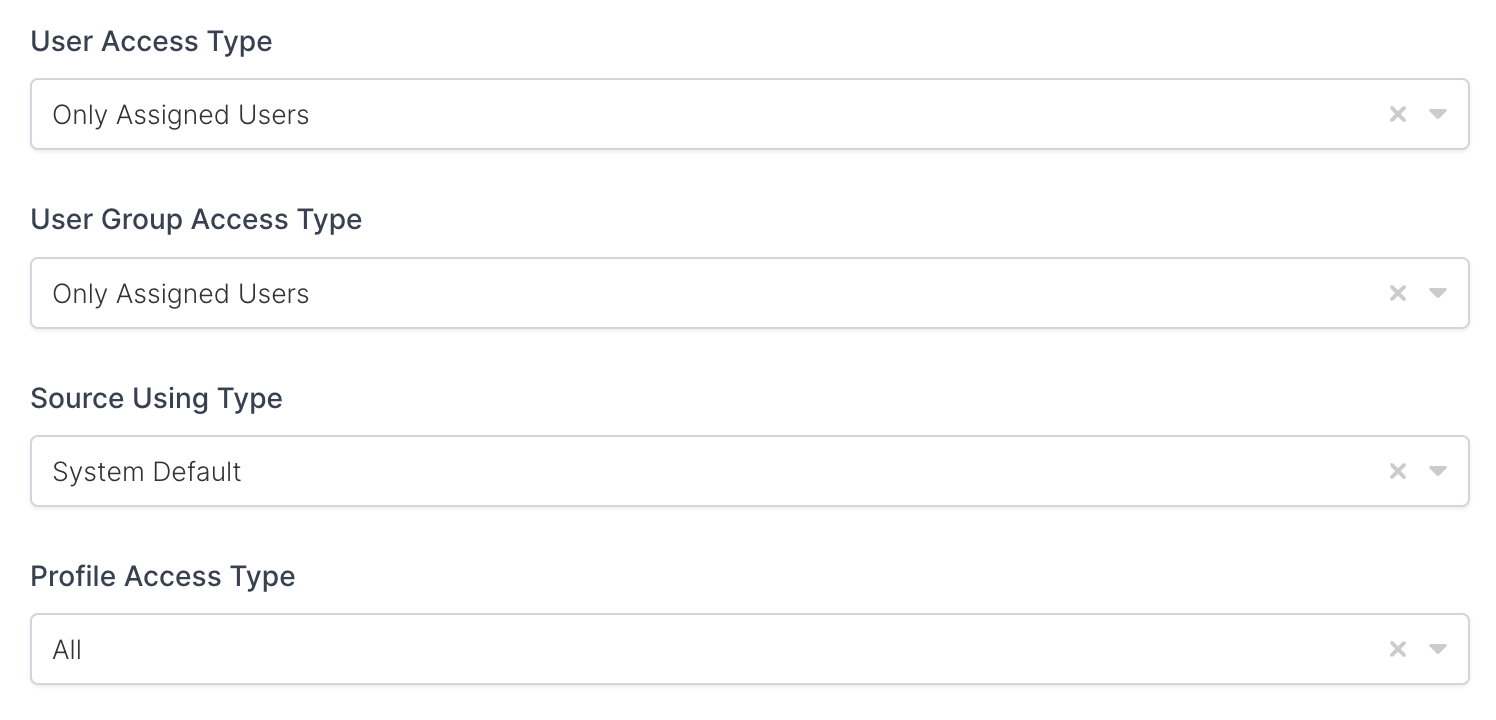

To ensure that the application has access to user groups, follow these steps:
If the application hasn't been configured yet, click the “Edit” option for the application.
In the application settings, navigate to the “Source, Provider, and Profile” tab.
Configure the “User Access Type“ and “User Group Access Type” as “Only Assigned Users.”
Configuring this setting will allow the application to access by user groups when users sign in.
![](../__attachments/141885441/CleanShot%202022-04-14%20at%2000.35.42@2x-20220414-043548.png?inst-v=866e9140-3da7-430a-a281-7dc8294ac19e)
Property | Description | Options |
---|---|---|
User Access Type | Defines which Users will access to this application. | Only Assigned Users |
User Group Access Type | Defines application’s user group access | Only Assigned Users |
Profile Access Type | Defines Application’s user’s profile access | Restricted - Only restricted user profile attributes |
2- Configuration Single Sign-On for Attivo BOTsink
As it highlighted at the beginning of document, please check out the Attivo BOTsink’s SSO configuration page first.

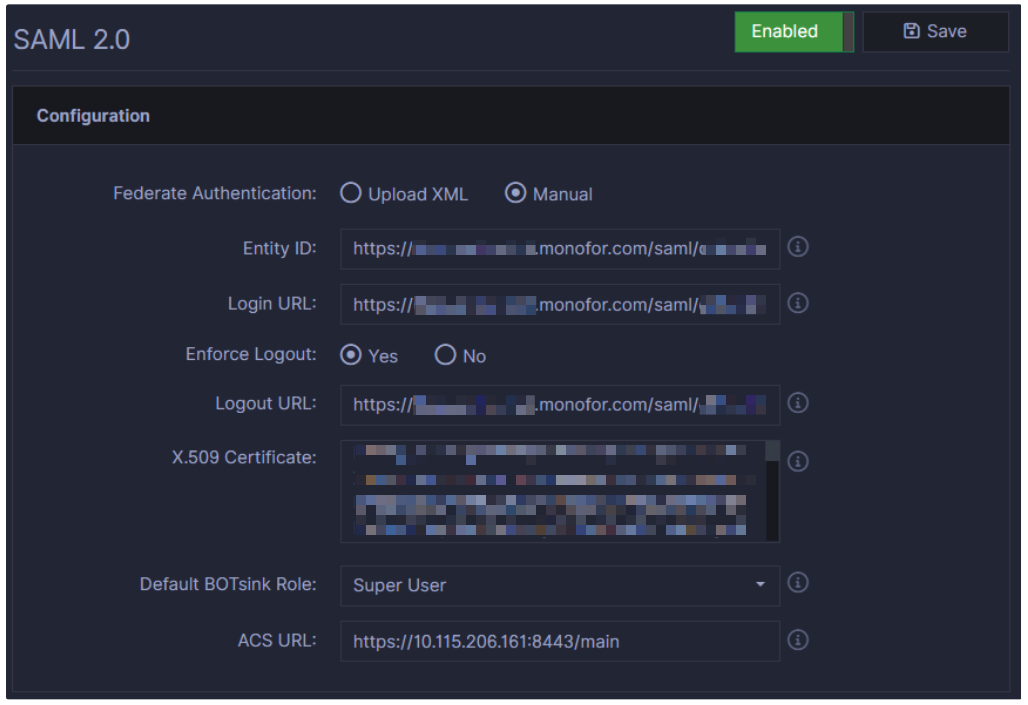

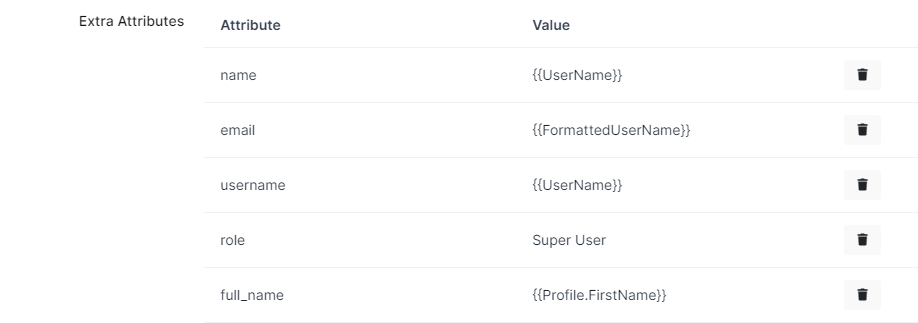

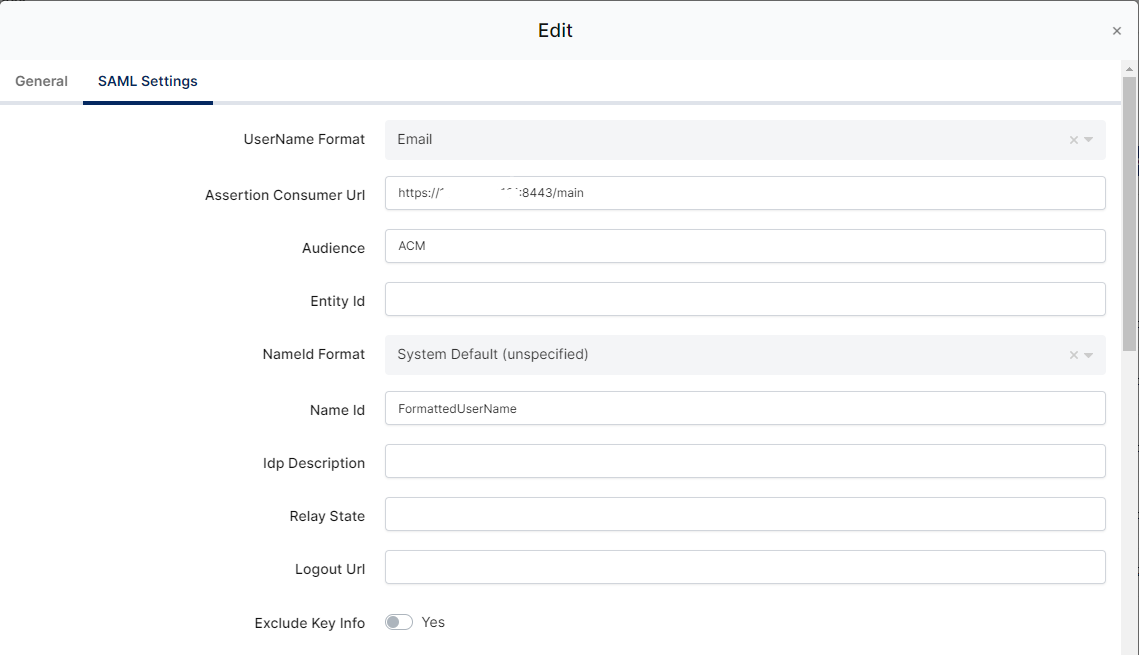

Please add your SAML settings to the application. The following information is needed for your configuration.
![](../__attachments/141885441/SE-2023-12-18-21-00-29-20231218-180150.png?inst-v=866e9140-3da7-430a-a281-7dc8294ac19e)
Download IdP Metadata from Keys section of Monosign and upload it to the SAML Settings page.
Now, go back to Monosign and give access to your users and try login.
3- Assign a user to the Attivo BOTsink application

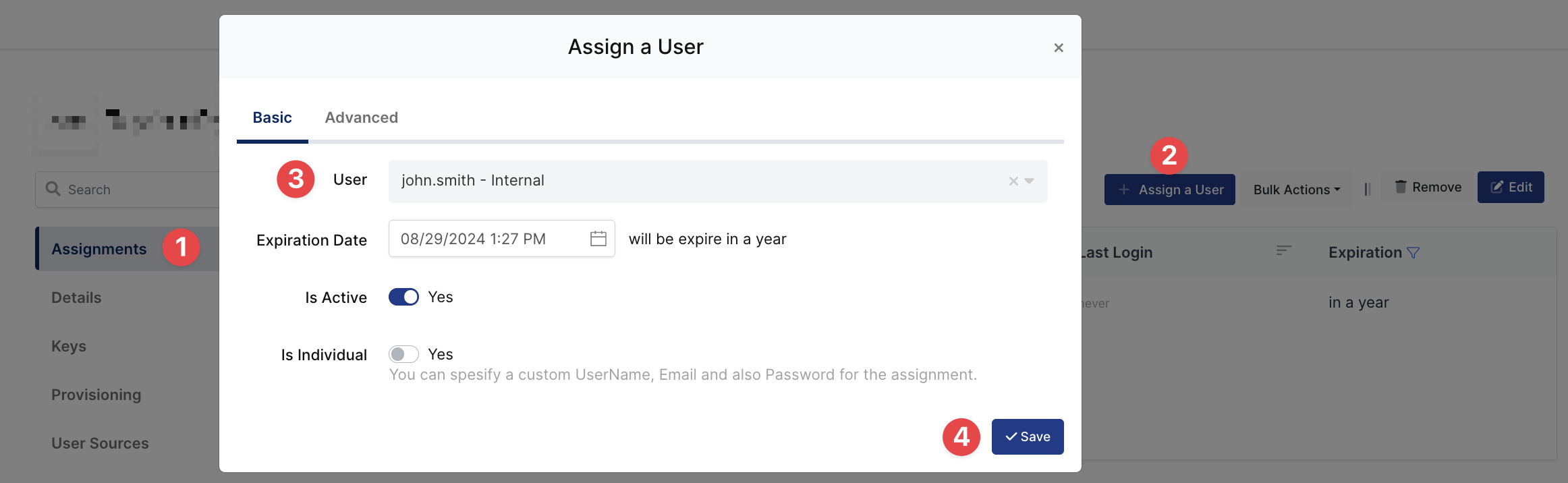

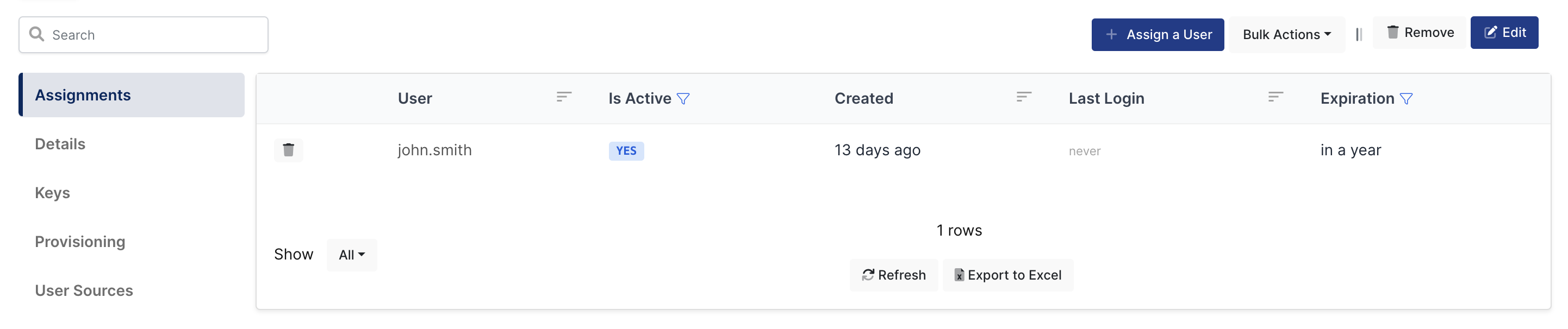

Please follow below instructions on how to assign a user to the Attivo BOTsink application. In this example john.smith
will assign to the application access.
![](../__attachments/141885441/CleanShot%202023-08-29%20at%2013.28.19@2x-20230829-102857.png?inst-v=866e9140-3da7-430a-a281-7dc8294ac19e)
![](../__attachments/141885441/CleanShot%202023-08-29%20at%2013.29.20@2x-20230829-102926.png?inst-v=866e9140-3da7-430a-a281-7dc8294ac19e)
4- Sign In Test
Now try login. Navigate to the Attivo BOTsink application. Type your username and click login.
If everything is well configured, the page will be redirected to Monosign’s login page. It can be log in passwordless with QR code or type username and password.
When the user logged in, the page will be redirected to the Attivo BOTsink page.
