Zabbix SAML Integration

This document explains how to implement Monosign with Zabbix. It covers Single Sign-On. Before you continue, it is better to start with Zabbix’s Single Sign-On implementation page.

Monofor has no responsibility to do Zabbix configurations. If you need support please contact Zabbix Support Services.

📑 Instructions

This documentation contains 4 main steps for integration.

Creating an Application on Monosign
Configuration Single Sign-On for Zabbix
Assign a user to the Zabbix application
Sign In Test

1- Creating an Application on Monosign

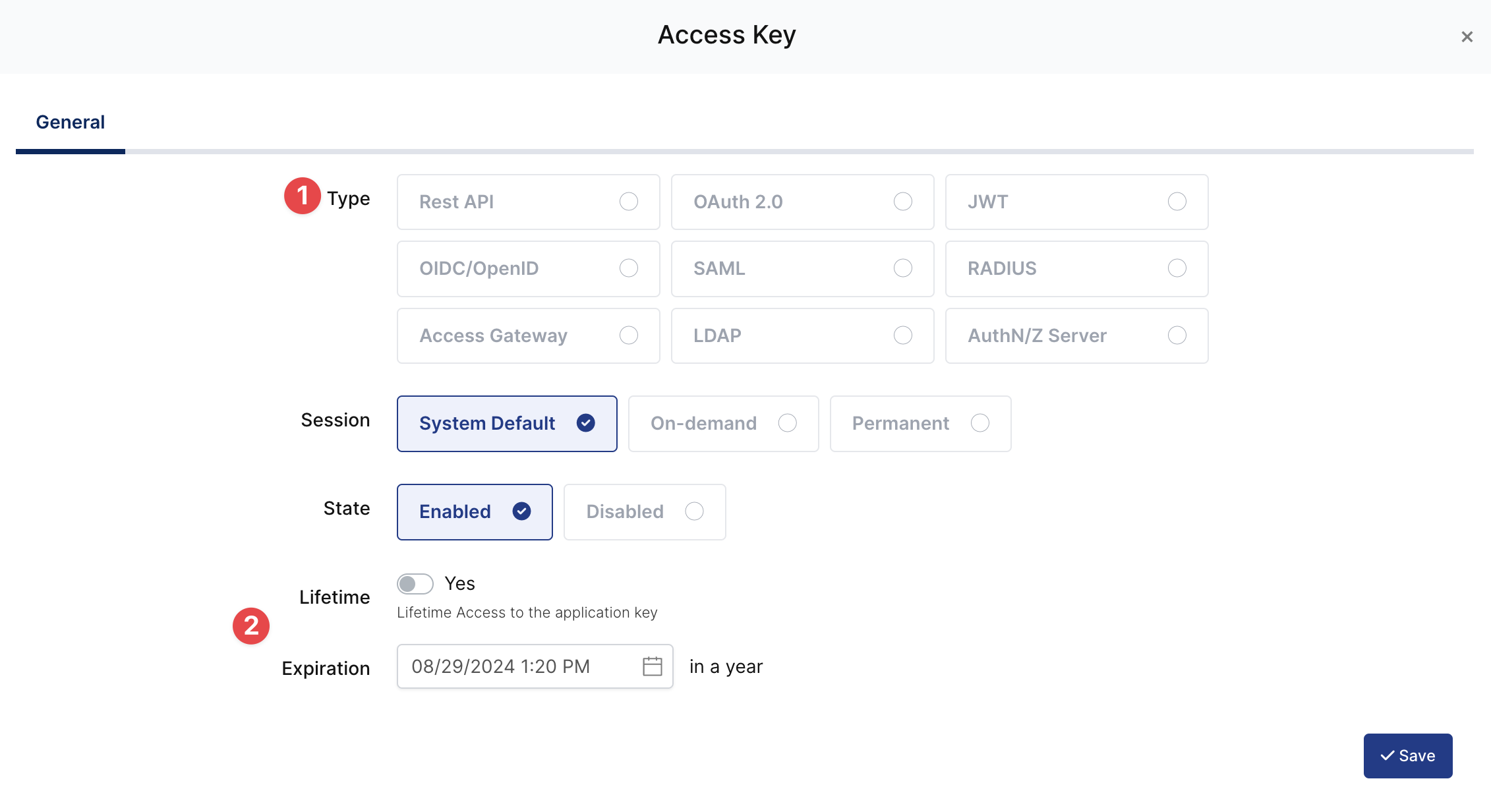

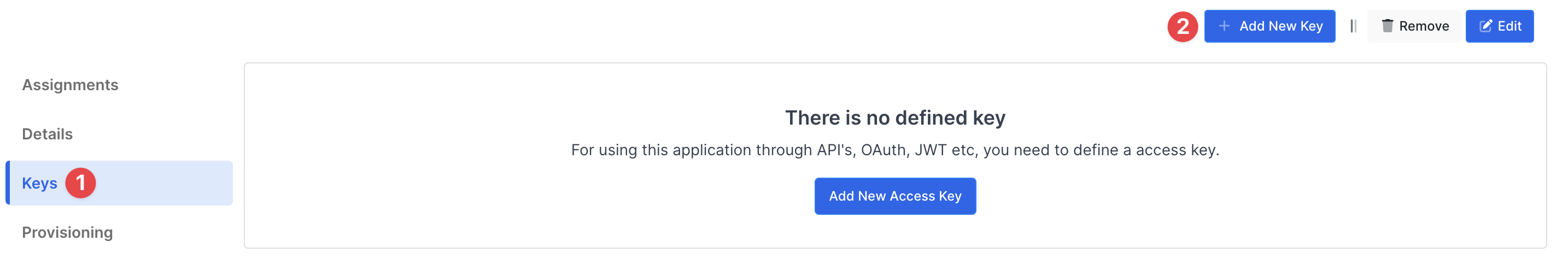

Create application on Monosign and configure your access policy. Once you create, click “Keys” and add a new Access Key for SAML Key for access.

This information will be necessary during the configuration of the application.

Property	Value	Options
Key Type	SAML	Rest API, OAuth 2.0, JWT, OIDC/OpenID, SAML, RADIUS, Access Gateway, LDAP, AuthN/Z Server
Expiration	Lifetime	Lifetime or Specific Date/Time - By Default Lifetime is Enabled.

Configuration details for the Zabbix application are provided as follows:

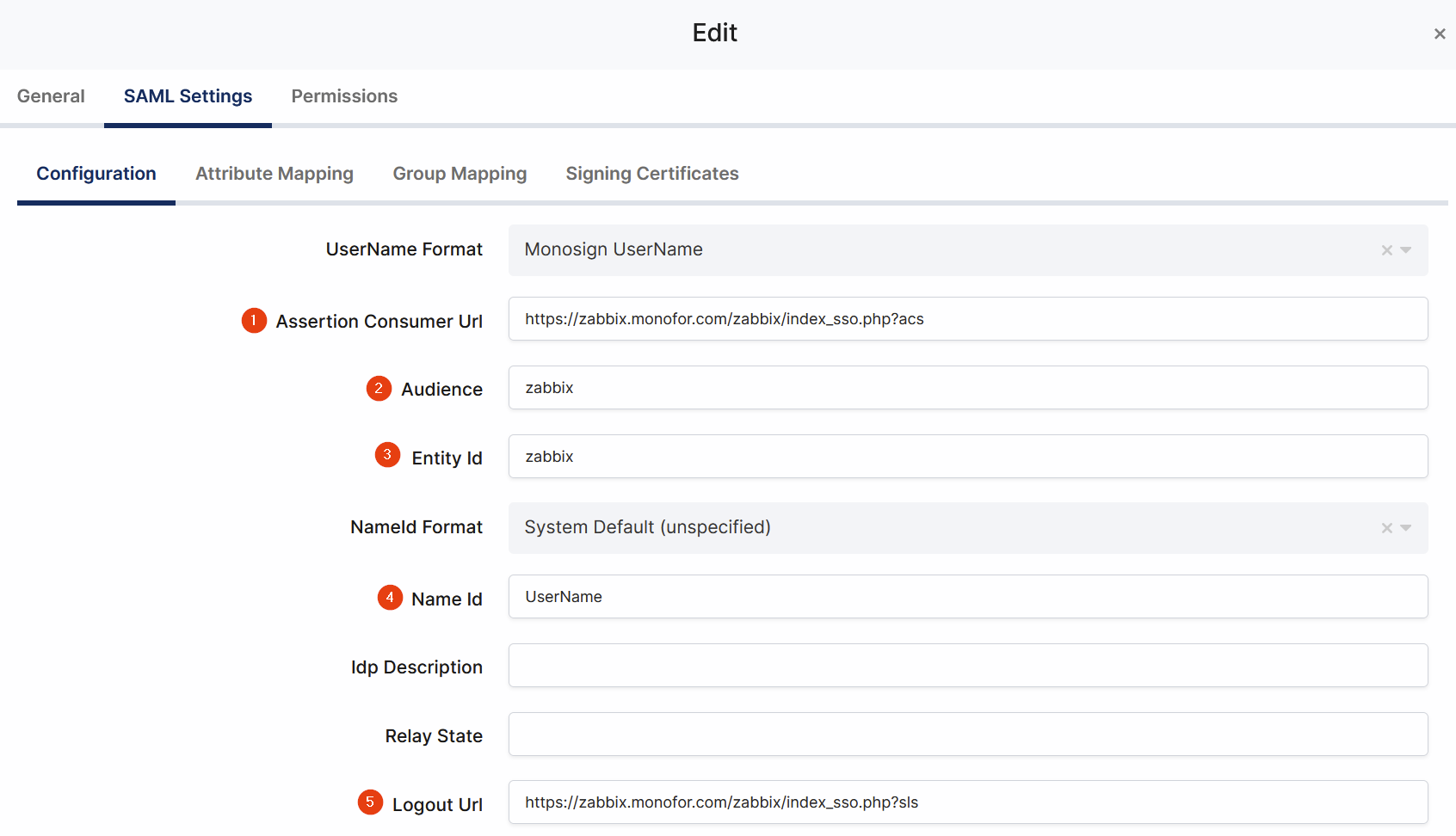

Change Assertion Consumer URL, Audience, Entity Id, Name Id, Logout Url, Attribute Mapping and Group Mapping.

Property	Value
Assertion Consumer URL	`https://<Zabbix-FQDN-OR-IP>/zabbix/index_sso.php?acs`
Audience	`zabbix`
Entity Id	`zabbix`
Name Id	`UserName`
Logout Url	`https://<Zabbix-FQDN-OR-IP>/zabbix/index_sso.php?sls`

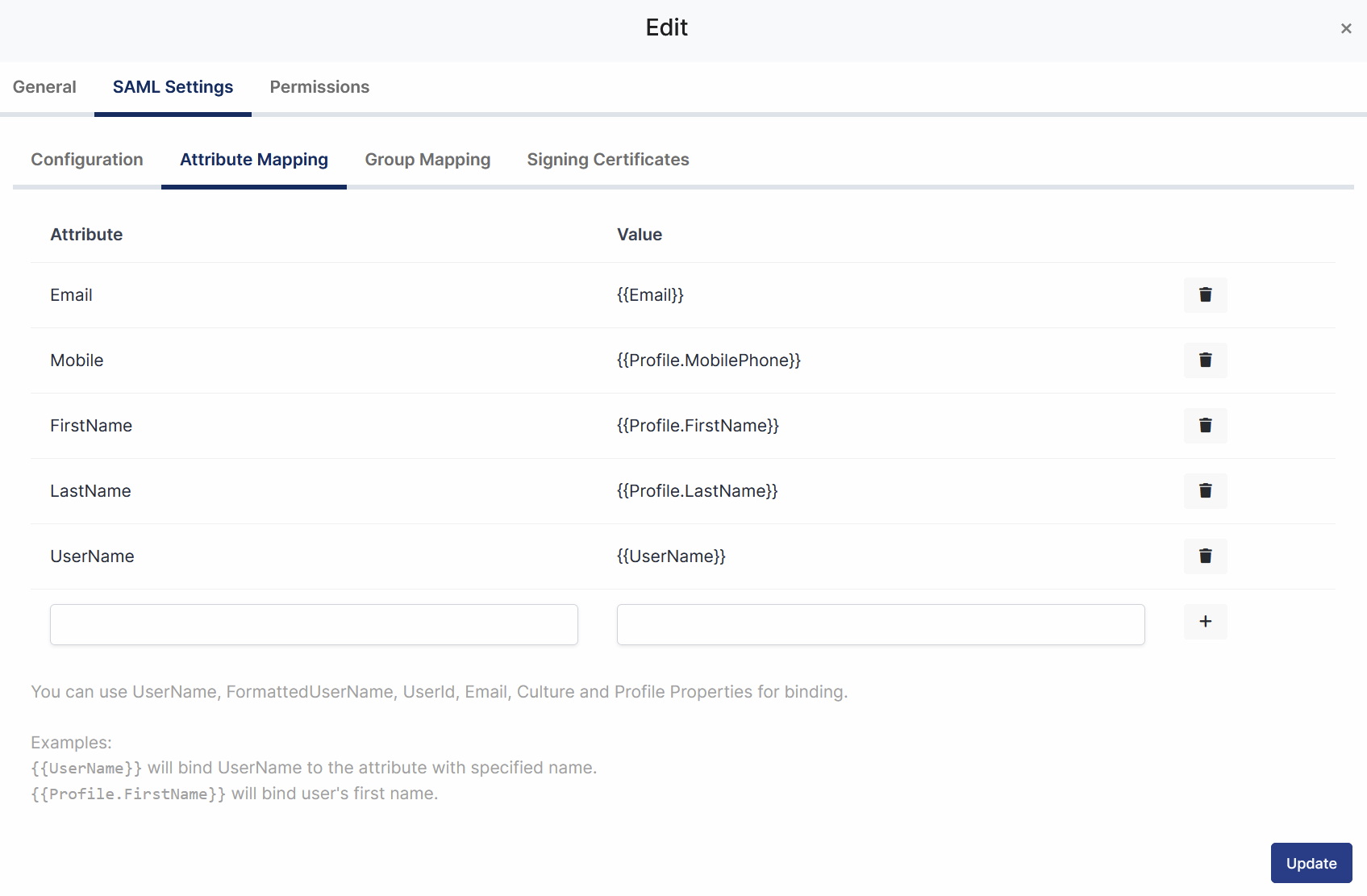

Attribute Mapping	`Attribute : UserName` `Value : {{UserName}}` `Attribute : Email` `Value : {{Email}}` `Attribute : FirstName` `Value : {{Profile.FirstName}}` `Attribute : LastName` `Value : {{Profile.LastName}}` `Attribute : Mobile` `Value : {{Profile.MobilePhone}}`

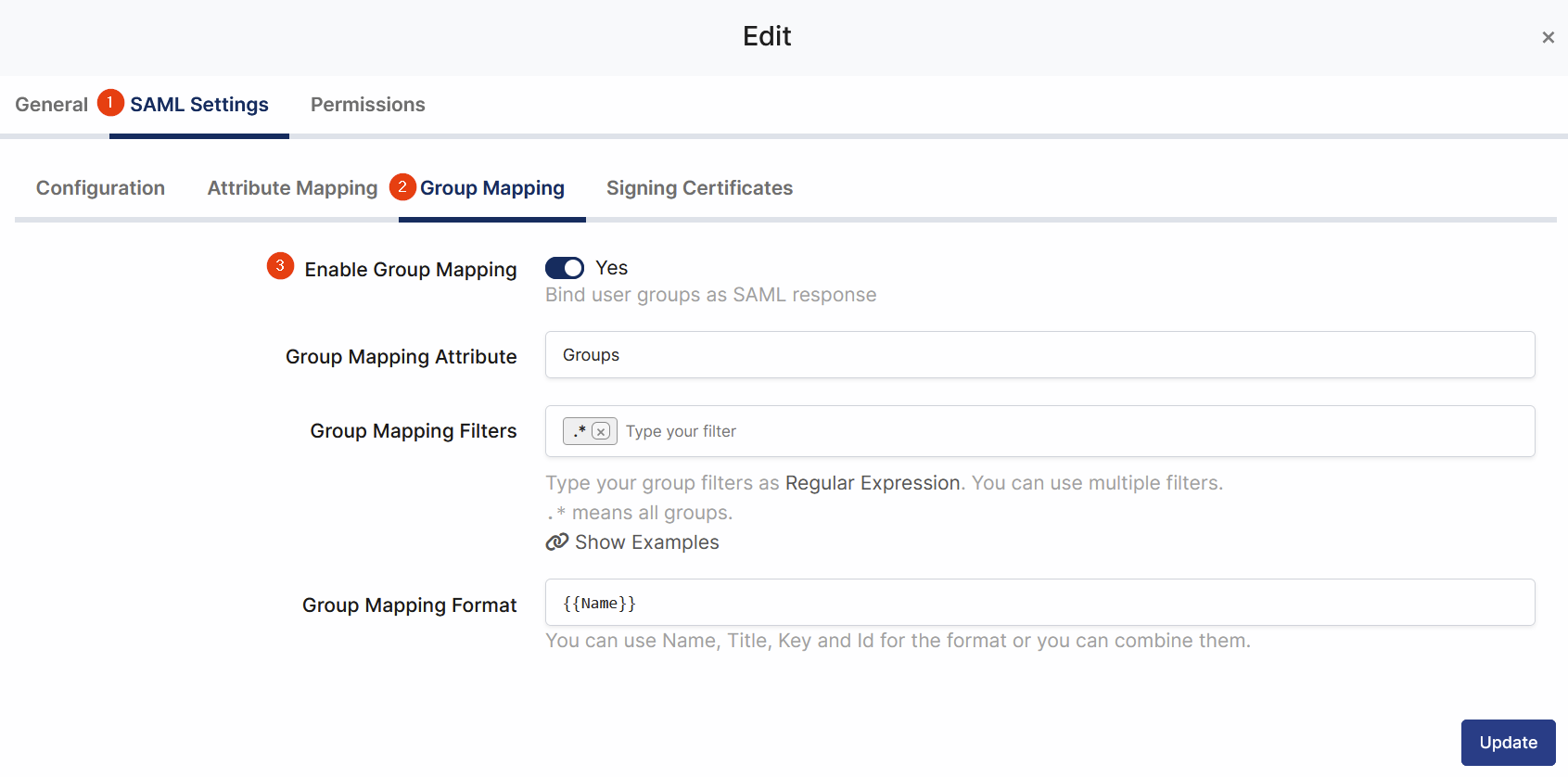

Group Mapping	Enable

To ensure that the application has access to user groups, follow these steps:

If the application hasn't been configured yet, click the “Edit” option for the application.
In the application settings, navigate to the “Source, Provider, and Profile” tab.

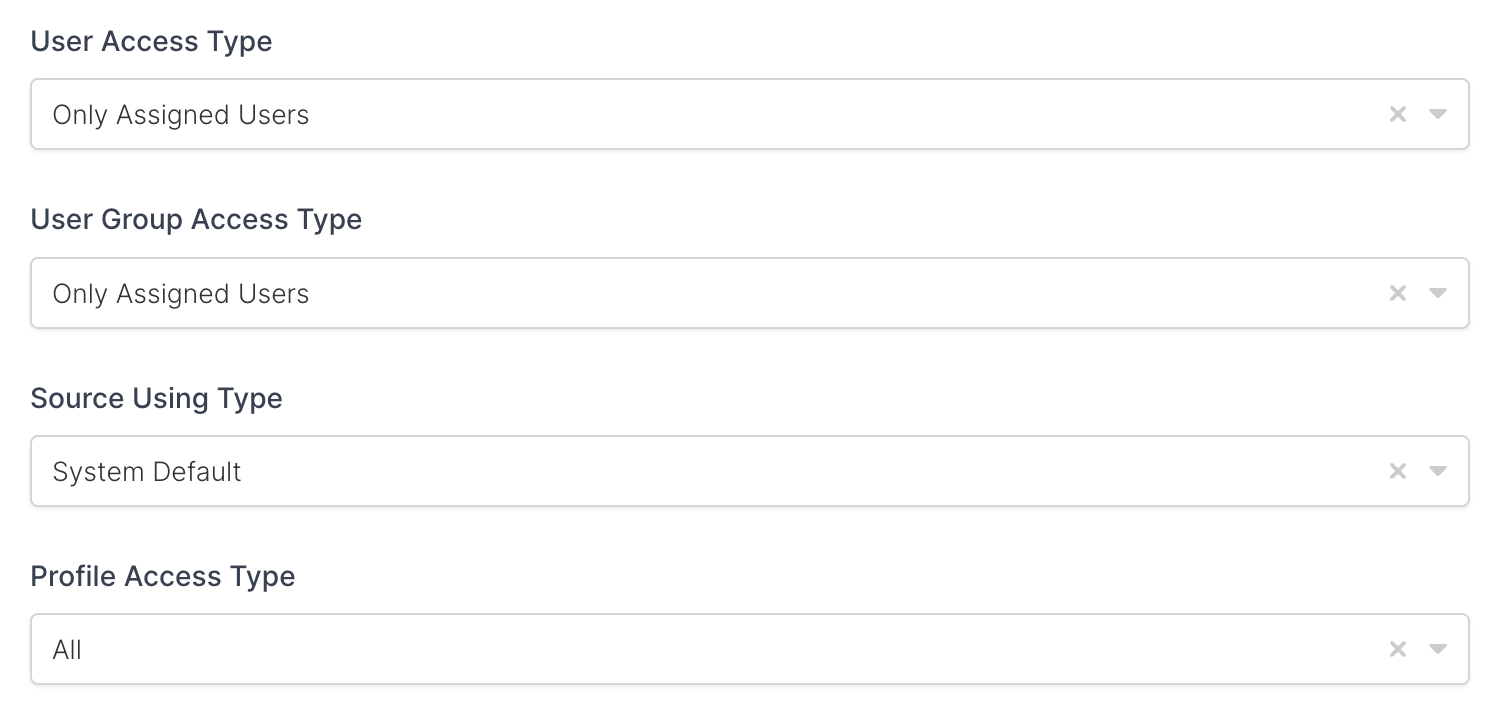

Configure the “User Access Type“ and “User Group Access Type” as “Only Assigned Users.”

Configuring this setting will allow the application to access by user groups when users sign in.

Property	Description	Options
User Access Type	Defines which Users will access to this application.	Only Assigned Users All Users
User Group Access Type	Defines application’s user group access	Only Assigned Users Assigned Users and Defined Sources All Users
Profile Access Type	Defines Application’s user’s profile access	Restricted - Only restricted user profile attributes All - All user profile attributes

2- Configuration Single Sign-On for Zabbix

As it highlighted at the beginning of document, please check out the Zabbix’s SSO configuration page first.

Please add your Zabbix settings to the application. The following information is needed for your configuration.

Below information needed before configure the Zabbix.

Property	Value
Enable SAML authentication	`Enable`
Enable JIT provisioning	`Enable`
IdP entity ID	`https://account.monofor.com/saml/468dcbfb-f55c-4235-a8d8-1d362b98865c`
SSO service URL	`https://account.monofor.com/saml/468dcbfb-f55c-4235-a8d8-1d362b98865c/login`
SLO service URL	`https://account.monofor.com/saml/468dcbfb-f55c-4235-a8d8-1d362b98865c/logout`
Username attribute	`UserName`
SP entity ID	`zabbix`
Configure JIT provisioning	`Enable`
Group name attribute	`Groups`
User name attribute	`FirstName`
User last name attribute	`LastName`

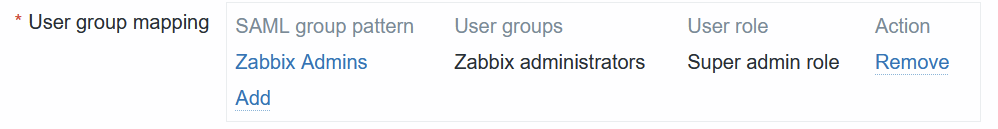

User group mapping

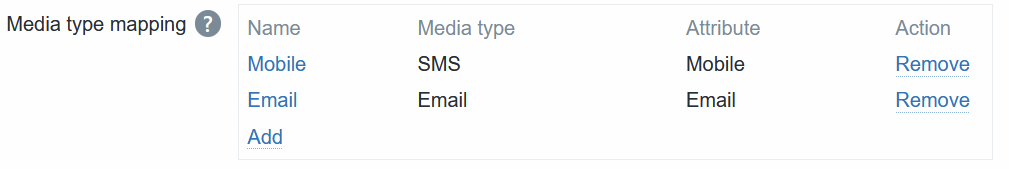

Media type mapping

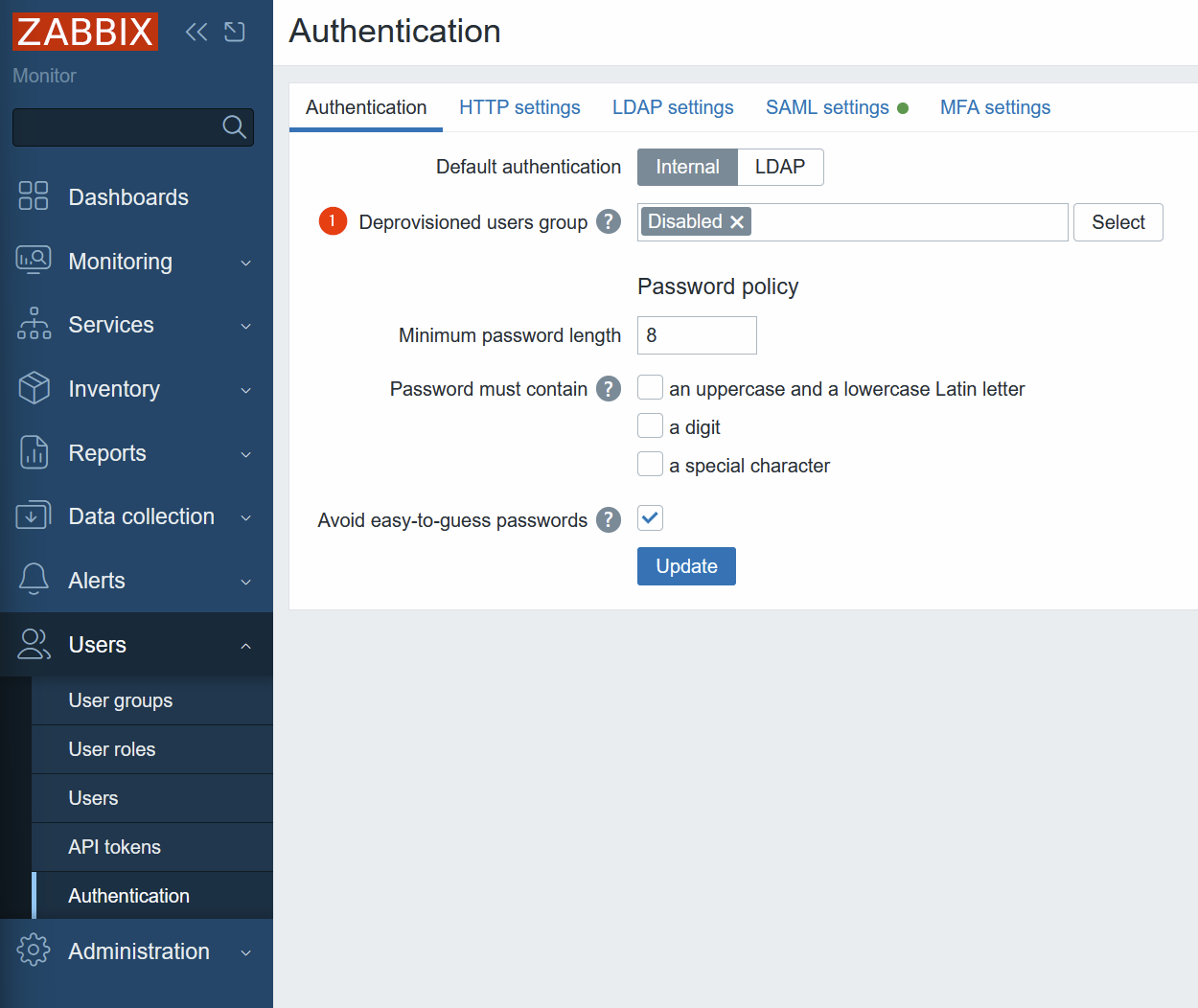

Open Zabbix Users → Authentication → Authentication

If JIT provisioning is enabled, a user group for deprovisioned users must be specified in the Authentication tab.

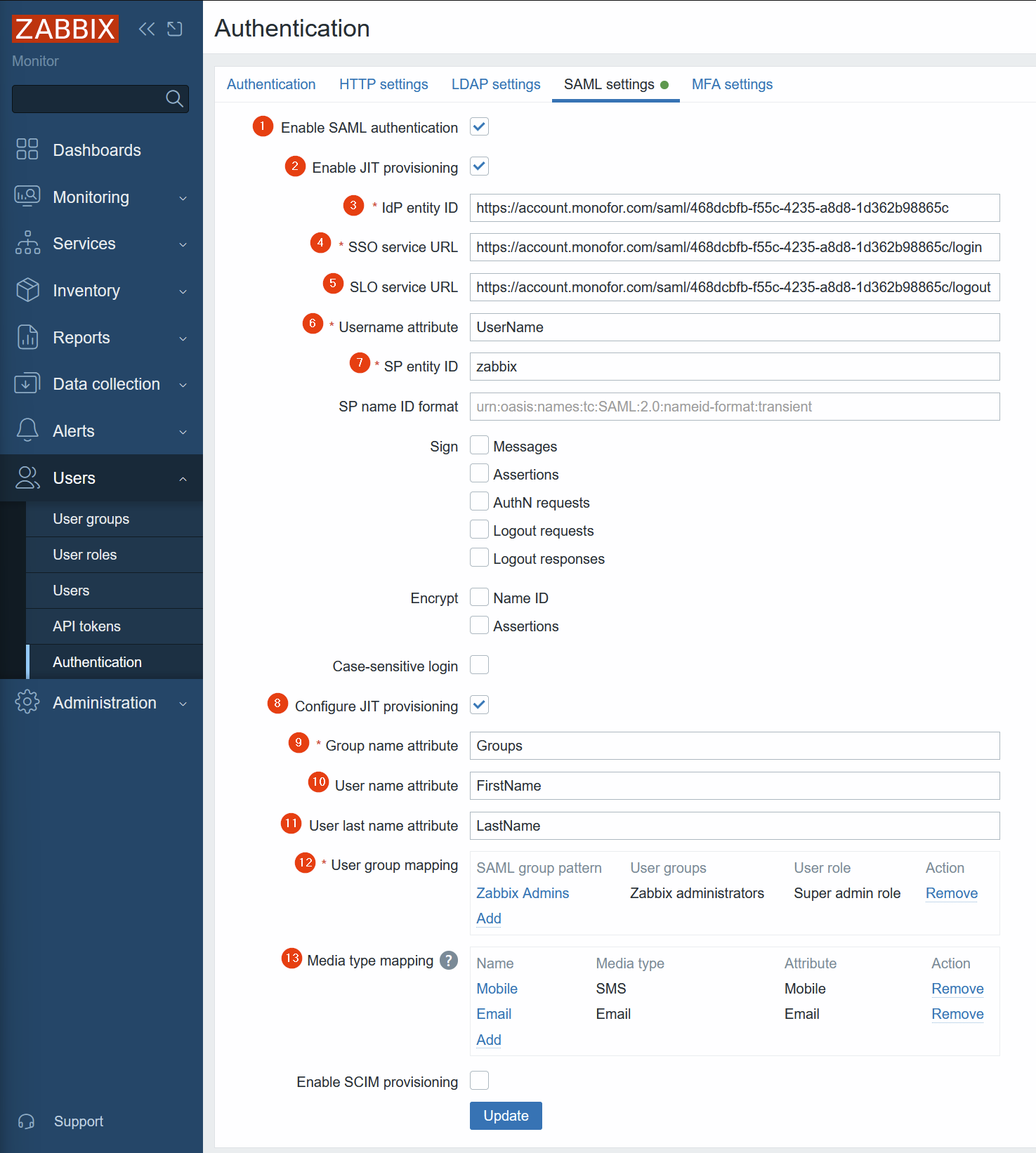

Open Zabbix Users → Authentication → SAML settings

Setup Zabbix server to trust Monosign IdP certificate

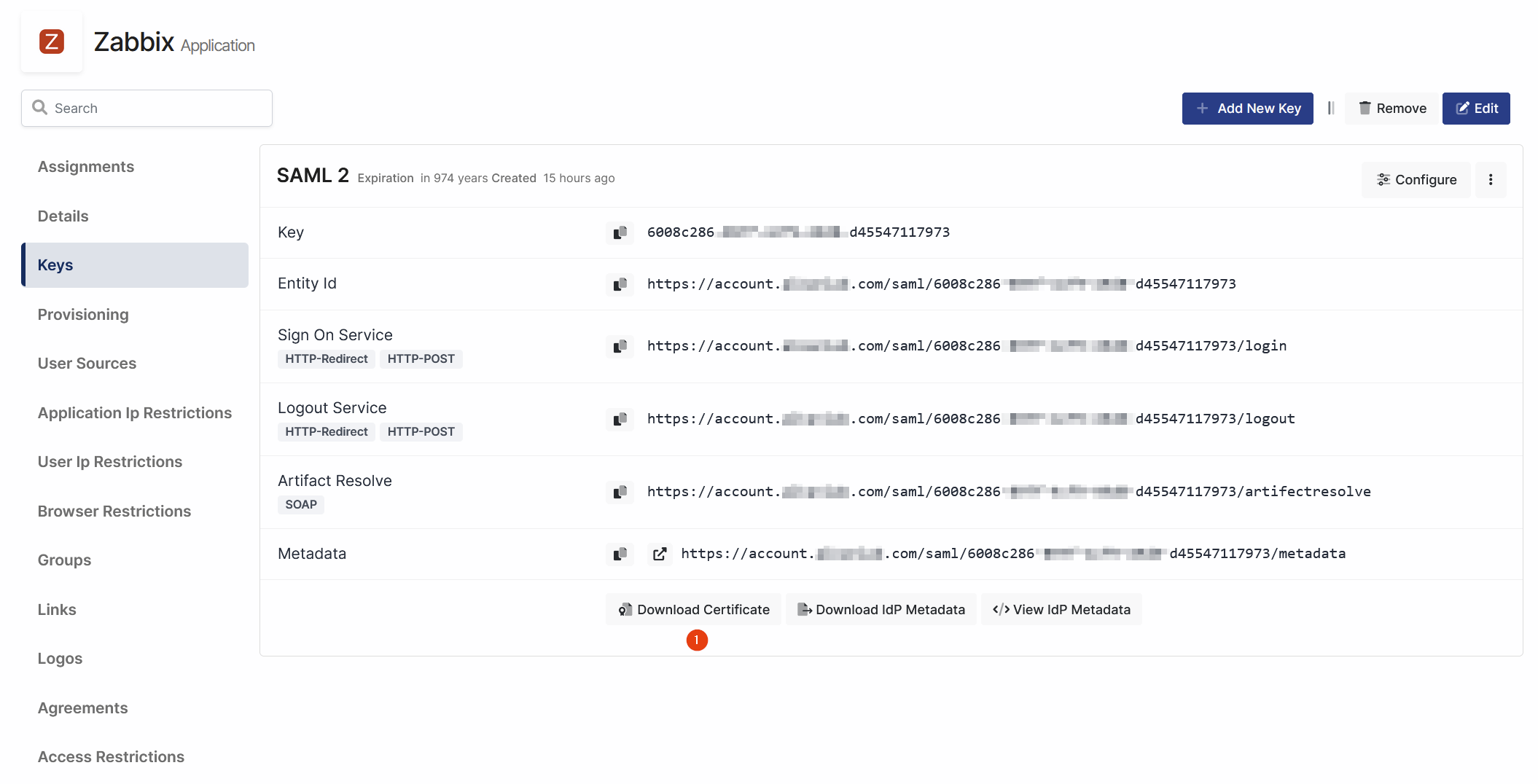

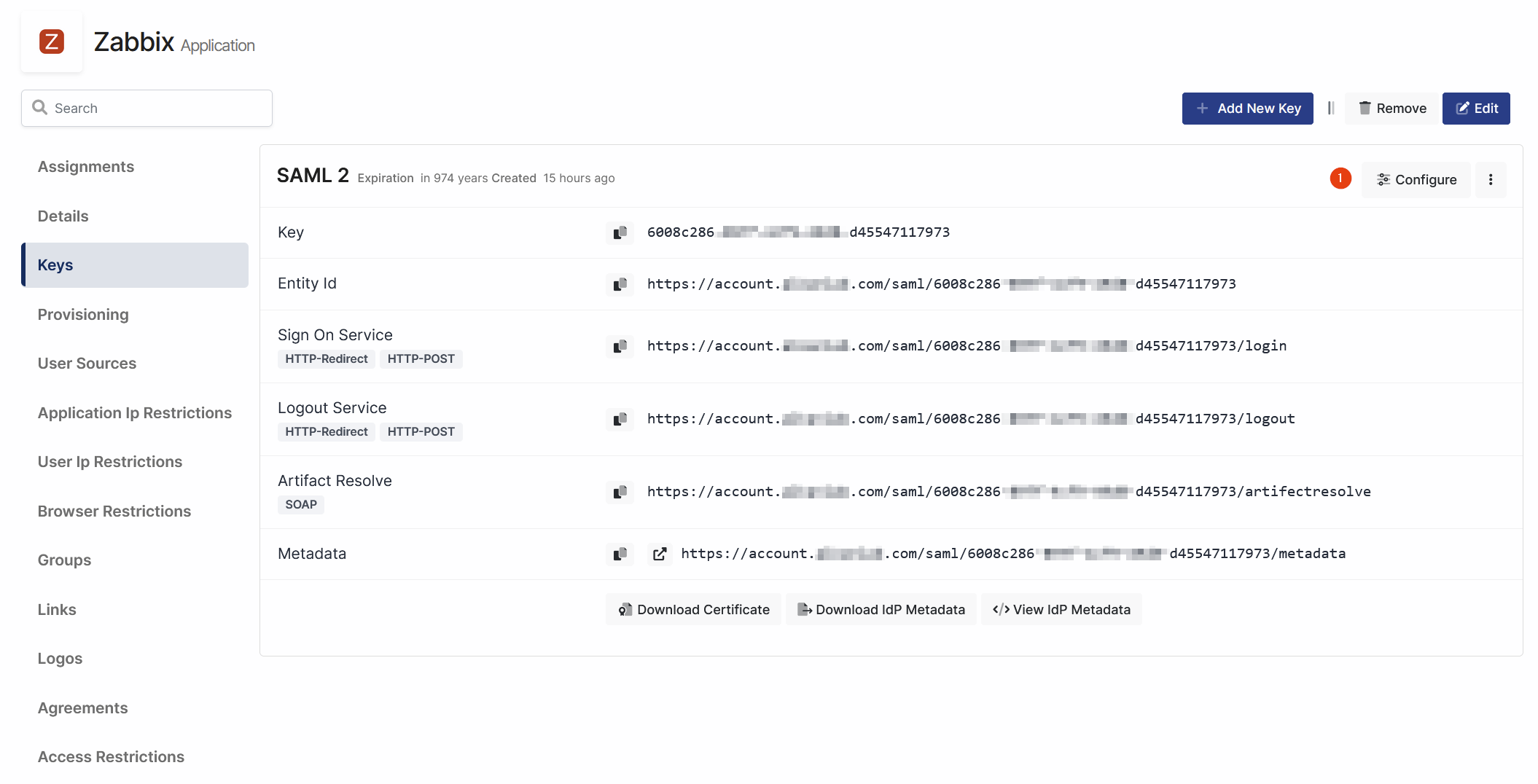

Download Monosign IdP certificate.

Rename this certificate as monosign.crt and put under /usr/share/zabbix/ui/conf/certs on the Zabbix Server.

Change Zabbix configuration to trust this certificate.

Open this file /etc/zabbix/web/zabbix.conf.php

BASH

// Used for SAML authentication.
// Uncomment to override the default paths to SP private key, SP and IdP X.509 certificates, and to set extra settings.
//$SSO['SP_KEY']                        = 'conf/certs/sp.key';
//$SSO['SP_CERT']                       = 'conf/certs/sp.crt';
$SSO['IDP_CERT']                = 'conf/certs/monosign.crt';
//$SSO['SETTINGS']              = [];

Now, go back to Monosign and give access to your users and try login.

3- Assign a user to the Zabbix application

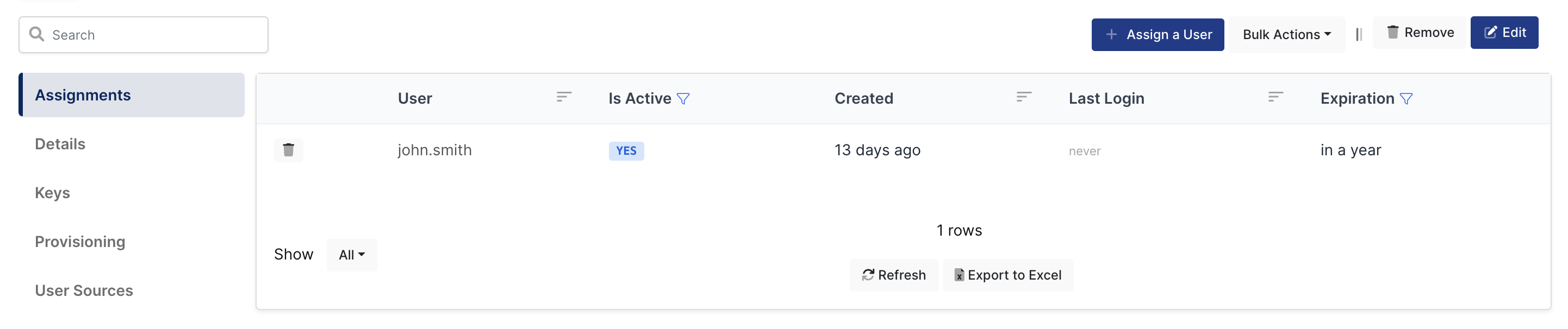

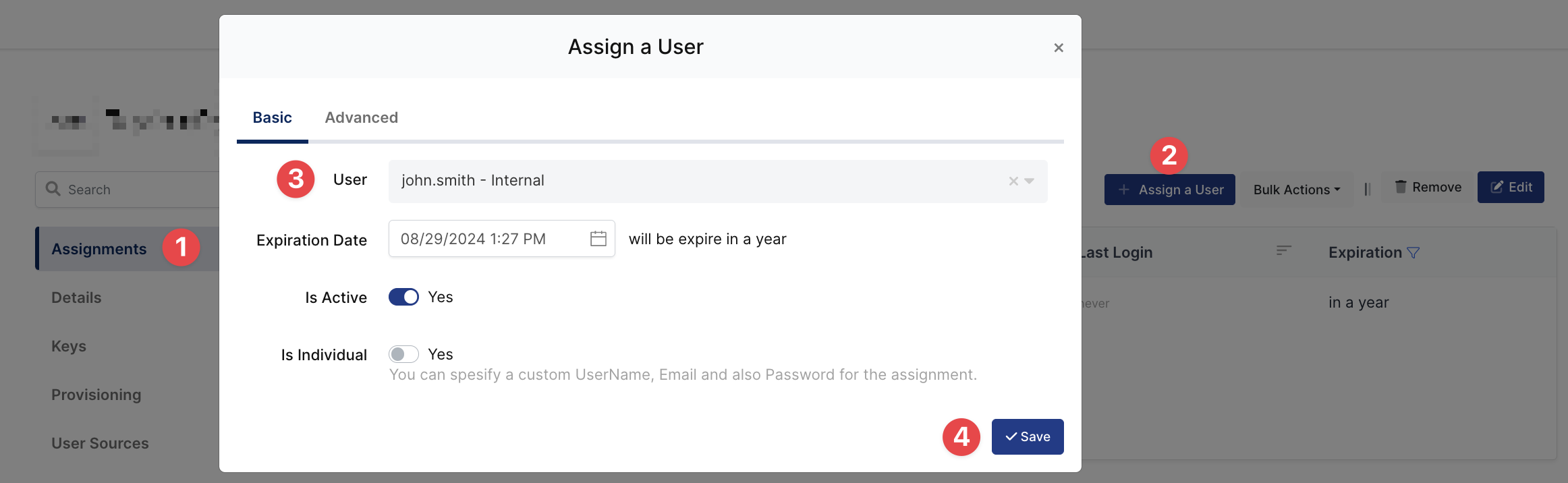

Please follow below instructions on how to assign a user to the Zabbix application. In this example john.smith will assign to the application access.

4- Sign In Test

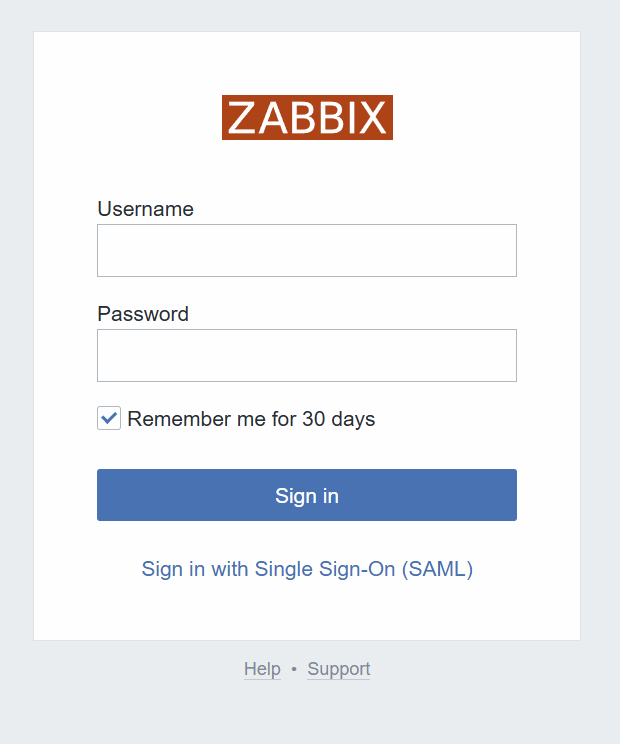

Now try login. Navigate to the Zabbix application login page. Click Log in with Monosign.

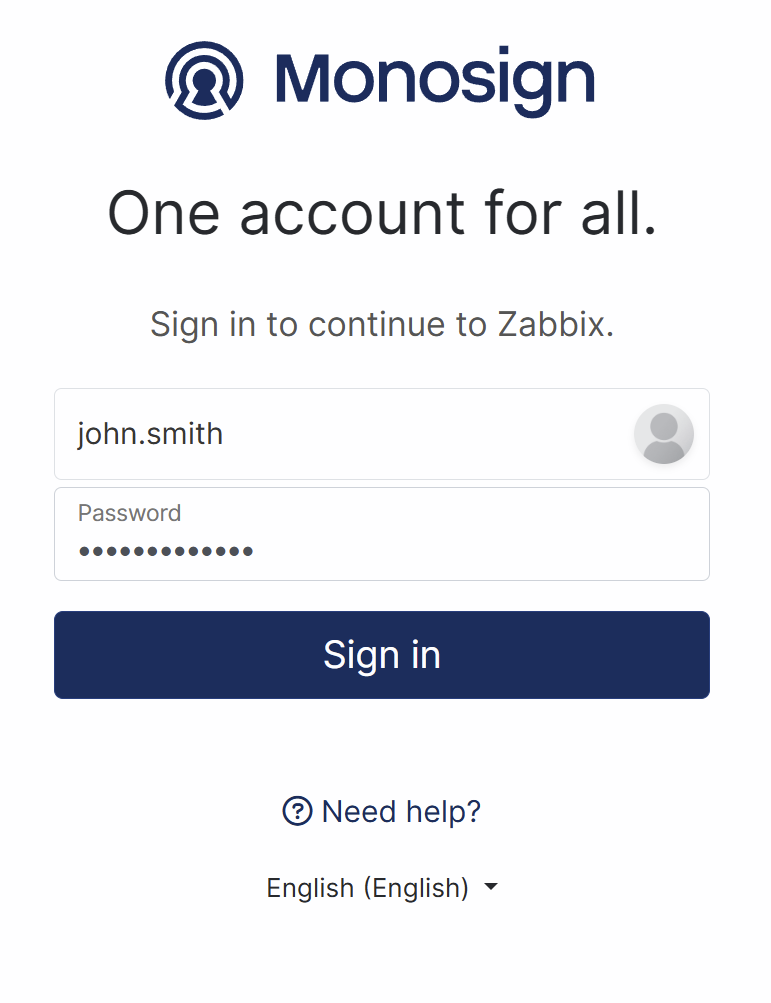

If everything is well configured, the page will be redirected to Monosign’s login page. It can be log in passwordless with QR code or type username and password.

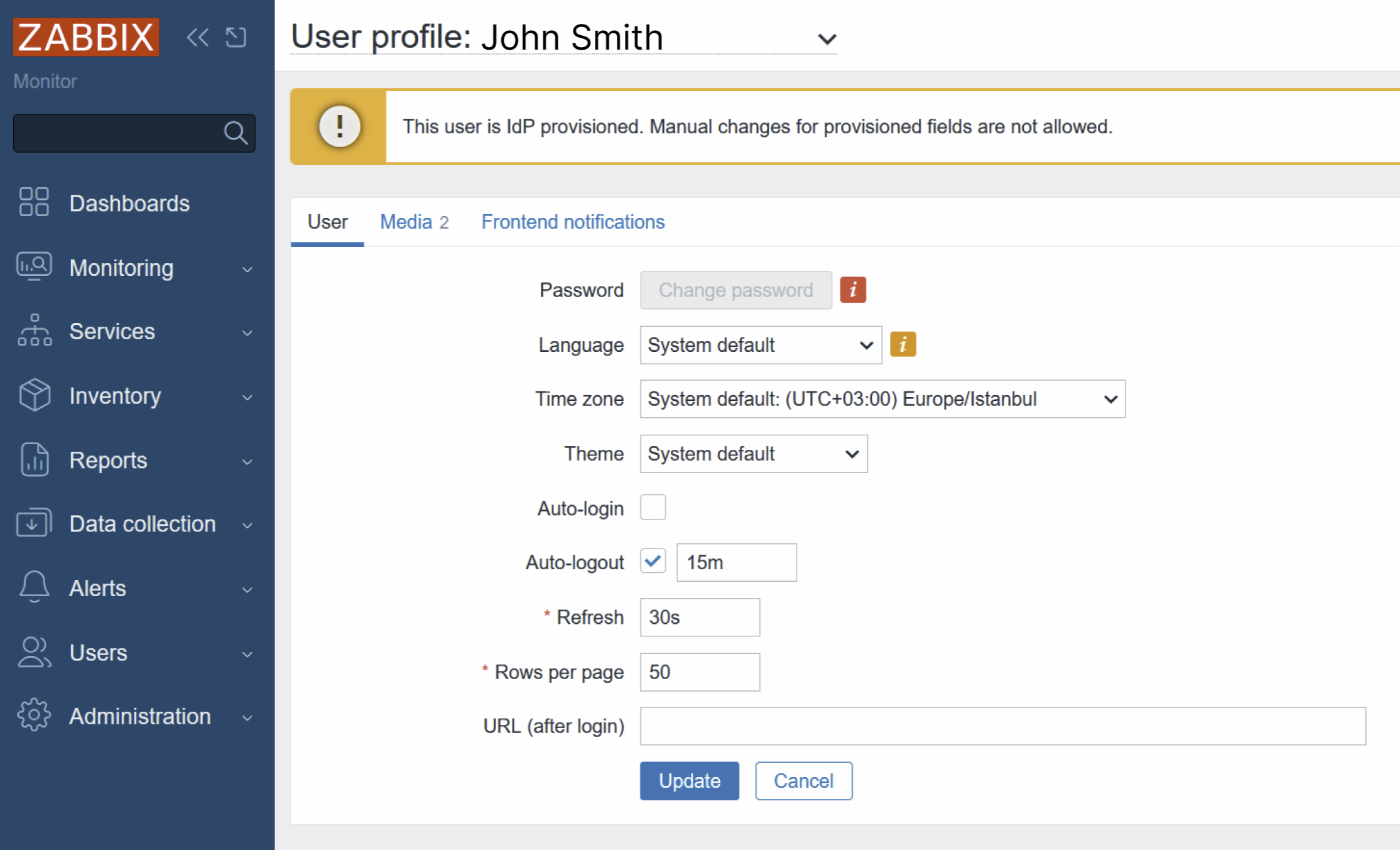

When the user logged in, the page will be redirected to the Zabbix page.
