VMware vCenter vSphere Client OIDC Integration

This document explains how to implement Monosign with VMware vCenter vSphere Client It covers Single Sign-On. Before you continue, it is better to start with VMware vCenter vSphere Client ’s Single Sign-On implementation page.

Monofor has no responsibility to do VMware vCenter vSphere Client configurations. If you need support please contact VMware vCenter vSphere Client Support Services.

đź“‘ Instructions

This documentation contains 4 main steps for integration.

  1. Creating an Application on Monosign

  2. Configuration Single Sign-On for VMware vCenter vSphere Client

  3. Assign a user to the VMware vCenter vSphere Client application

  4. Sign In Test

1- Creating an Application on Monosign

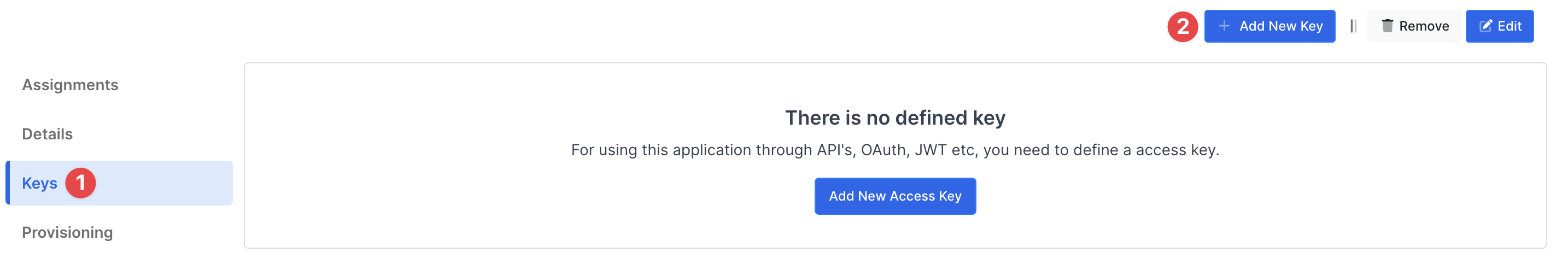

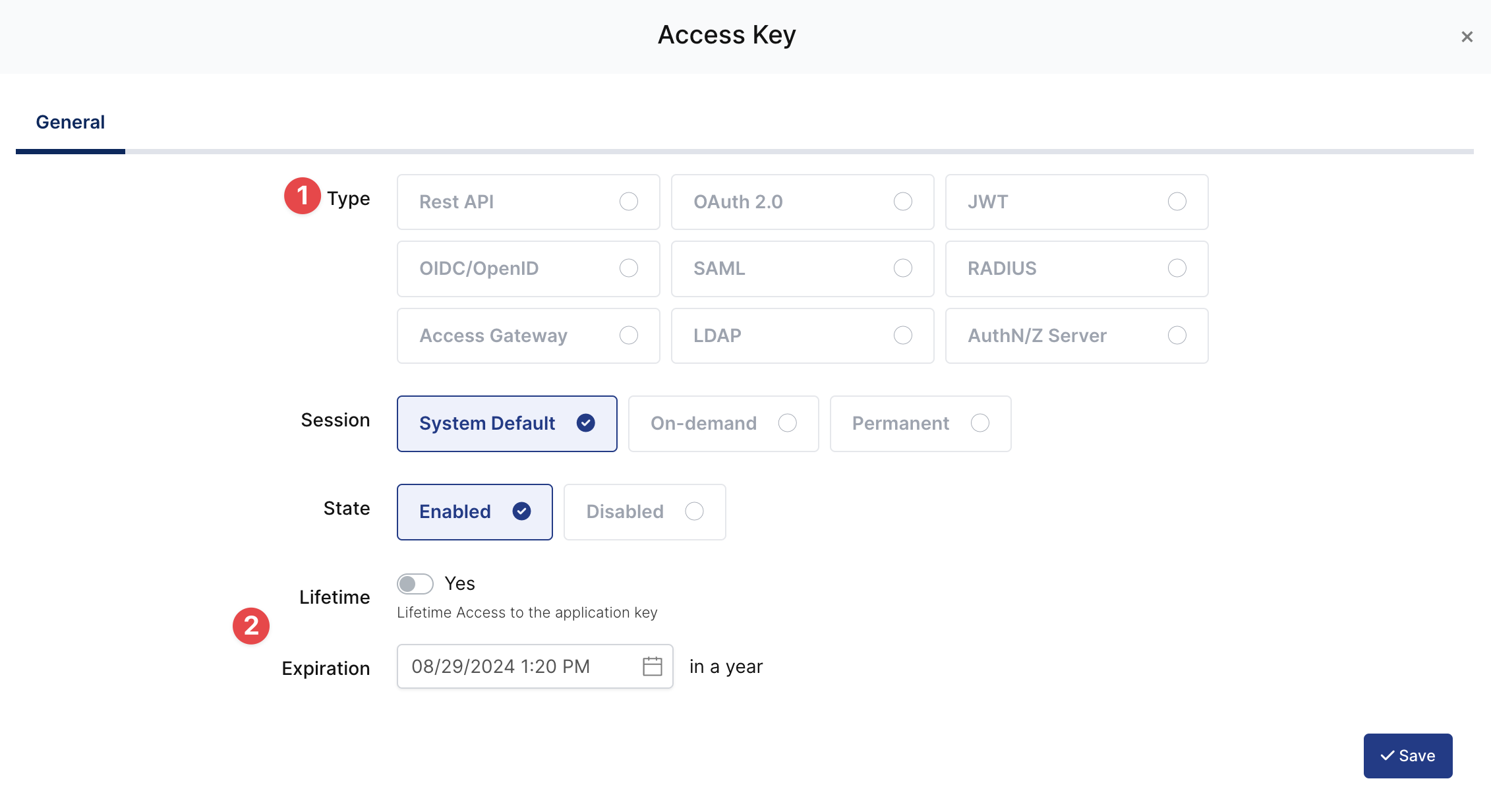

Create application on Monosign and configure your access policy. Once you create, click “Keys” and add a new Access Key for OIDC Key for access.

This information will be necessary during the configuration of the VMware vCenter vSphere Client application.

Property

Value

Options

Key Type

OIDC/OpenID

Rest API, OAuth 2.0, JWT, OIDC/OpenID, SAML, RADIUS, Access Gateway, LDAP, AuthN/Z Server

Expiration

Lifetime

Lifetime or Specific Date/Time - By Default Lifetime is Enabled.

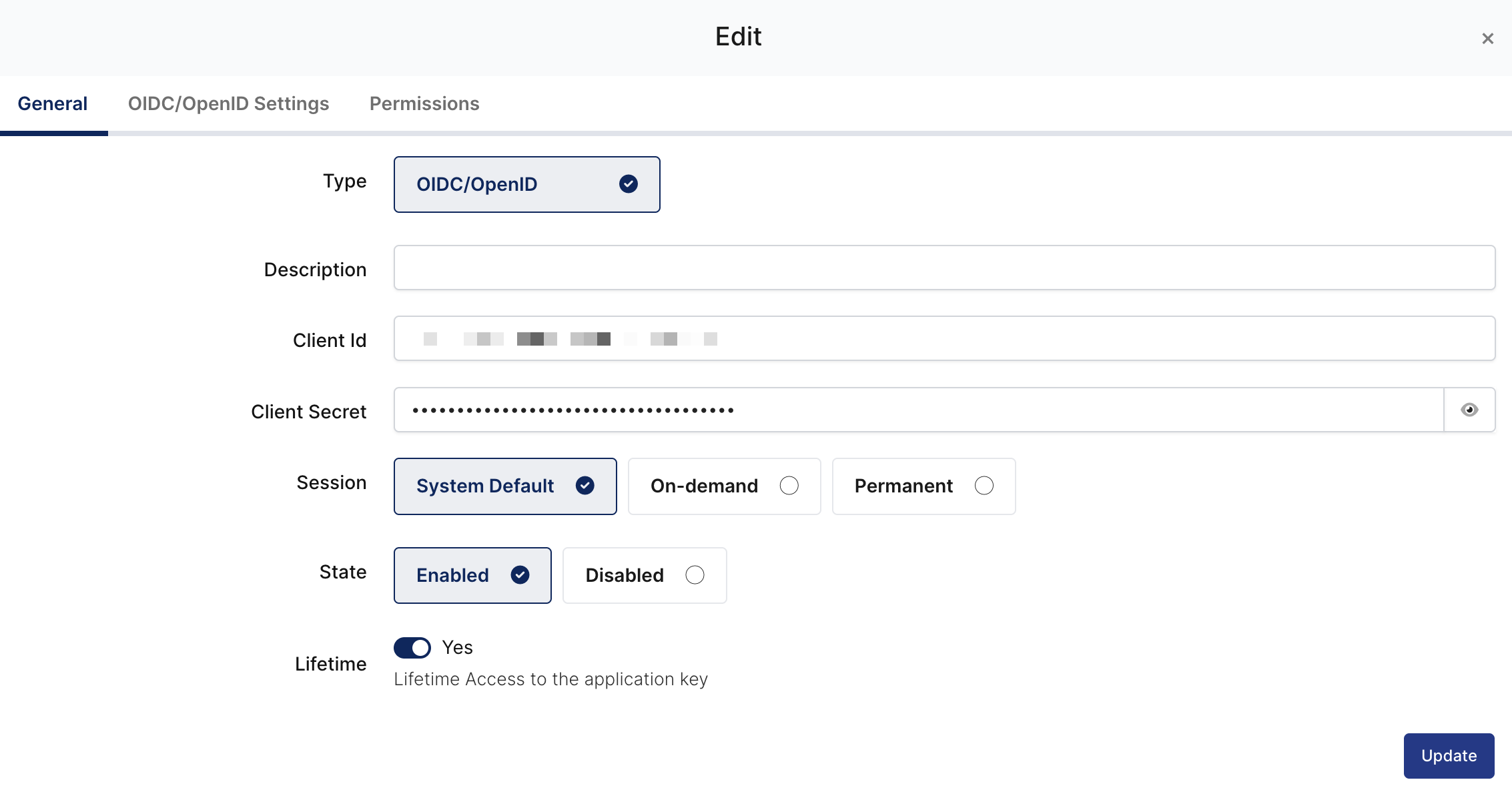

Configuration details for the VMware vCenter vSphere Client application are provided as follows:

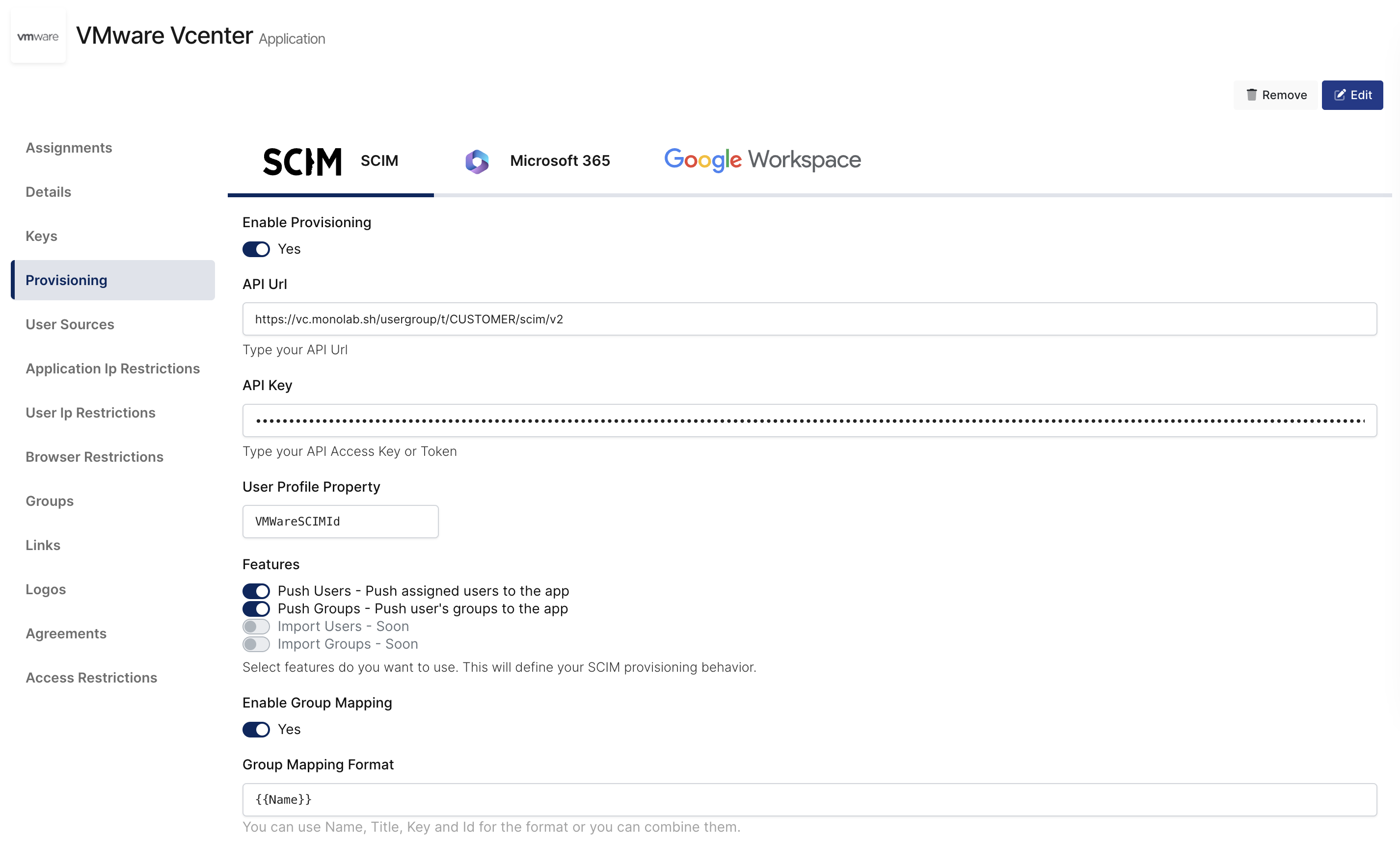

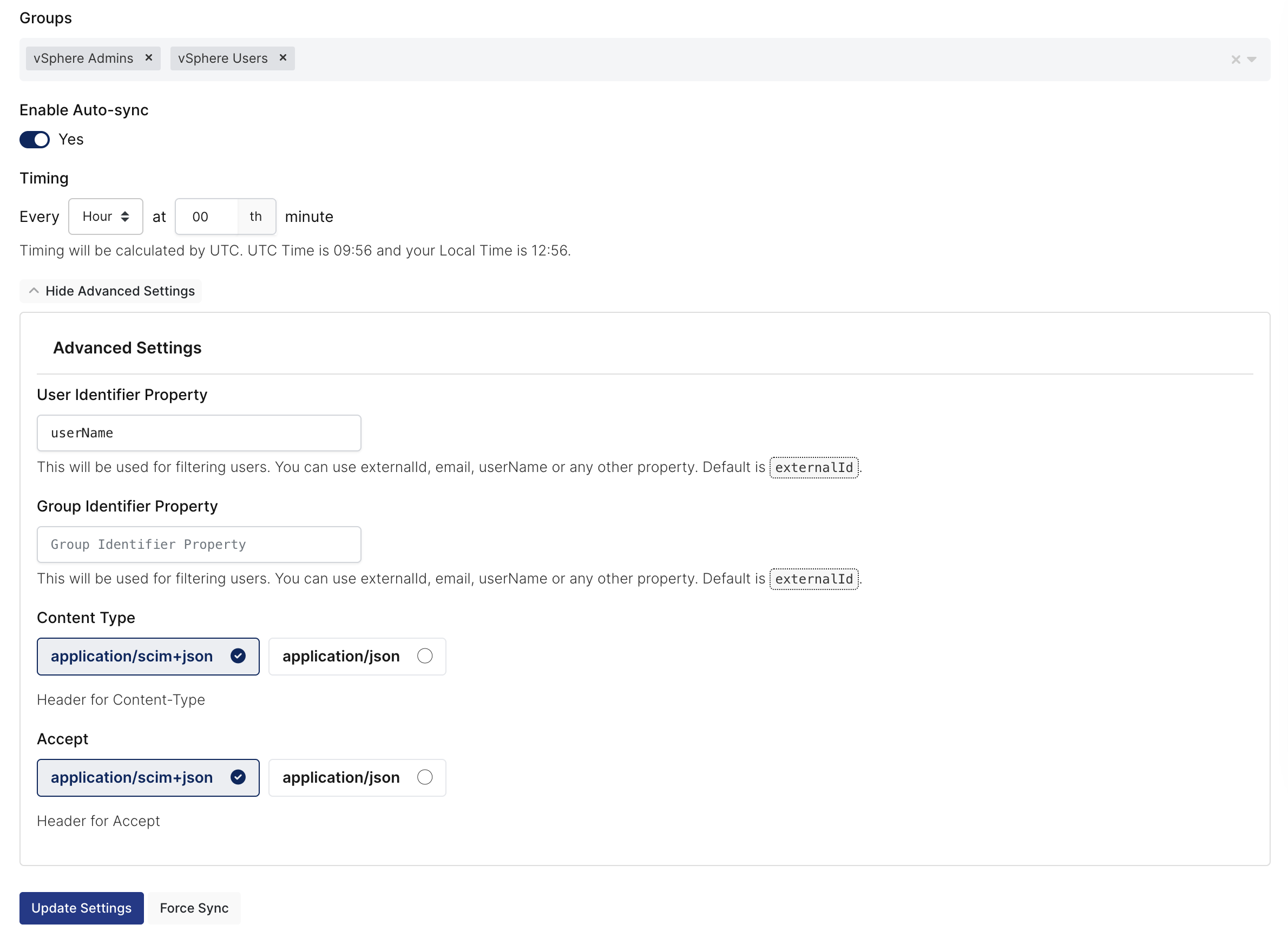

You also need to configure SCIM provider for your application. Click Provisioning and set your information.

SCIM Provider Settings

SCIM Provider Settings

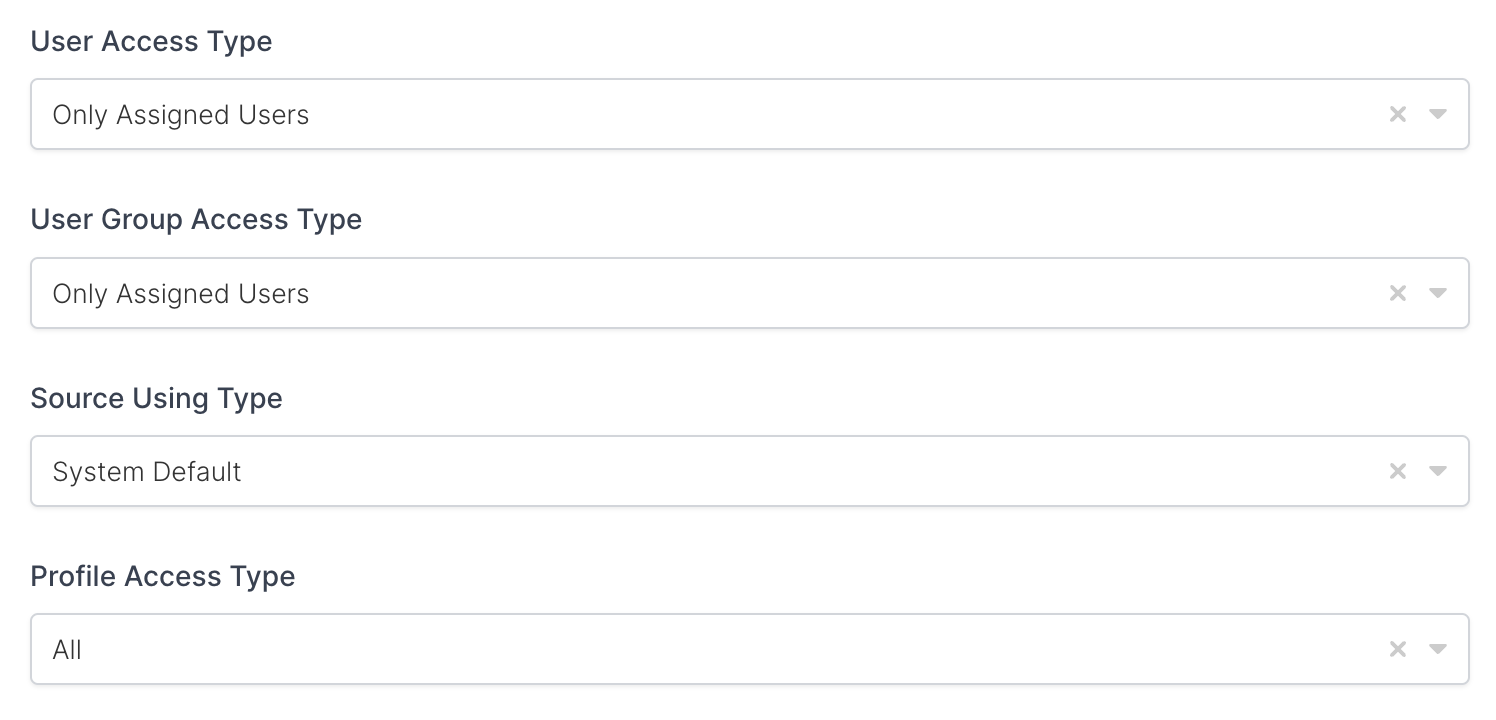

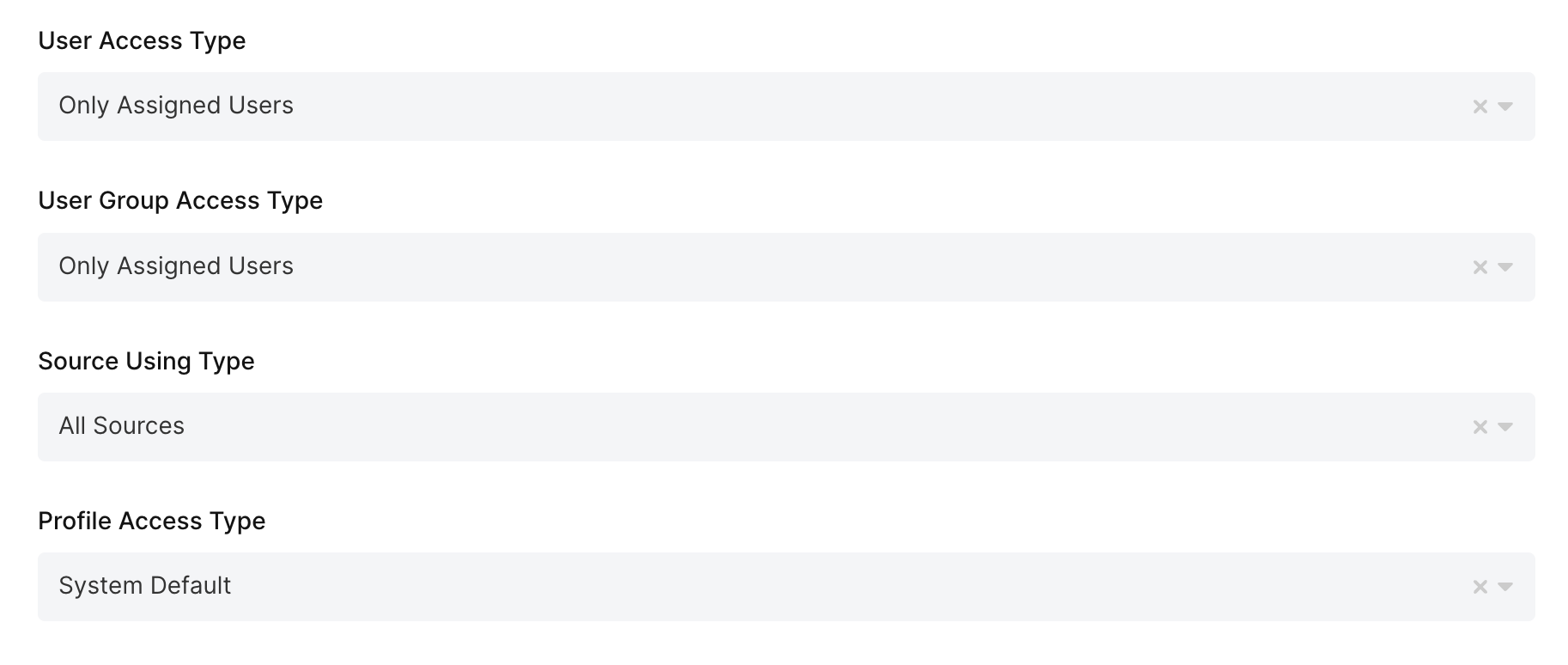

To ensure that the application has access to user groups, follow these steps:

  1. If the application hasn't been configured yet, click the “Edit” option for the application.

  2. In the application settings, navigate to the “Source, Provider, and Profile” tab.

  3. Configure the “User Access Type“ and “User Group Access Type” as “Only Assigned Users.”

Configuring this setting will allow the application to access by user groups when users sign in.

Property

Description

Options

User Access Type

Defines which Users will access to this application.

Only Assigned Users
All Users

User Group Access Type

Defines application’s user group access

Only Assigned Users
Assigned Users and Defined Sources
All Users

Profile Access Type

Defines Application’s user’s profile access

Restricted - Only restricted user profile attributes
All - All user profile attributes

2- Configuration Single Sign-On for VMware vCenter vSphere Client

As it highlighted at the beginning of document, please check out the VMware vCenter vSphere Client’s SSO configuration page first.

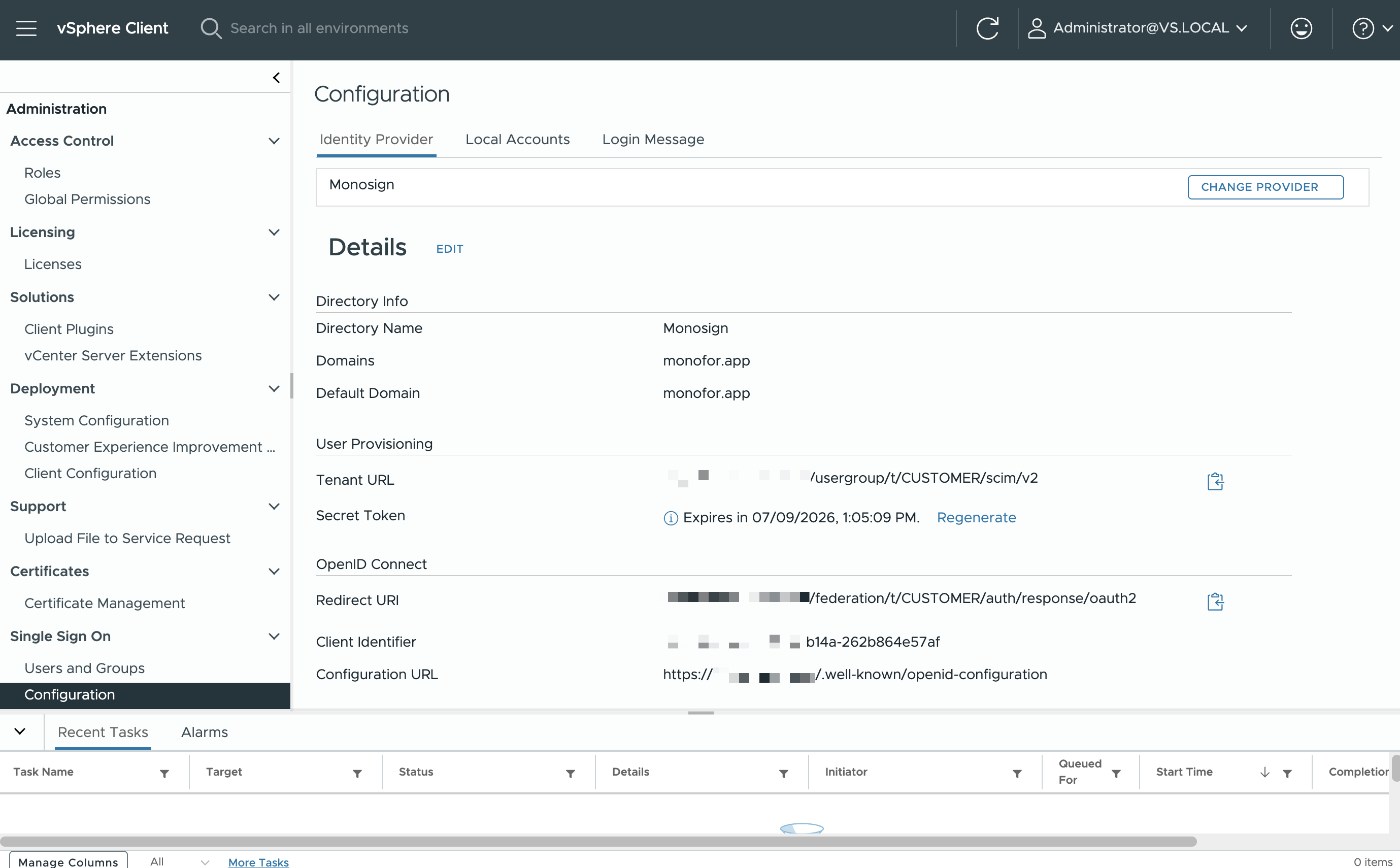

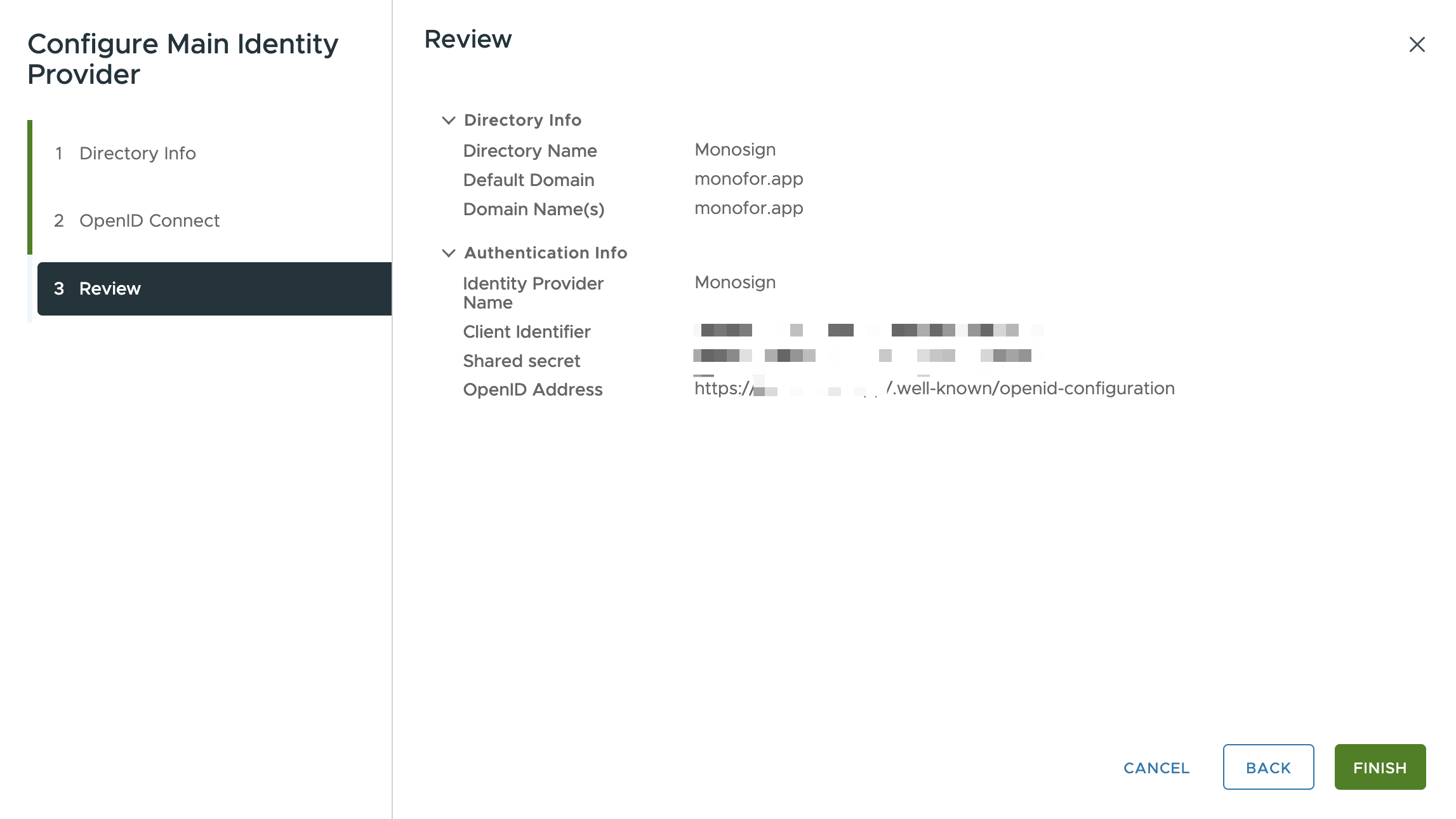

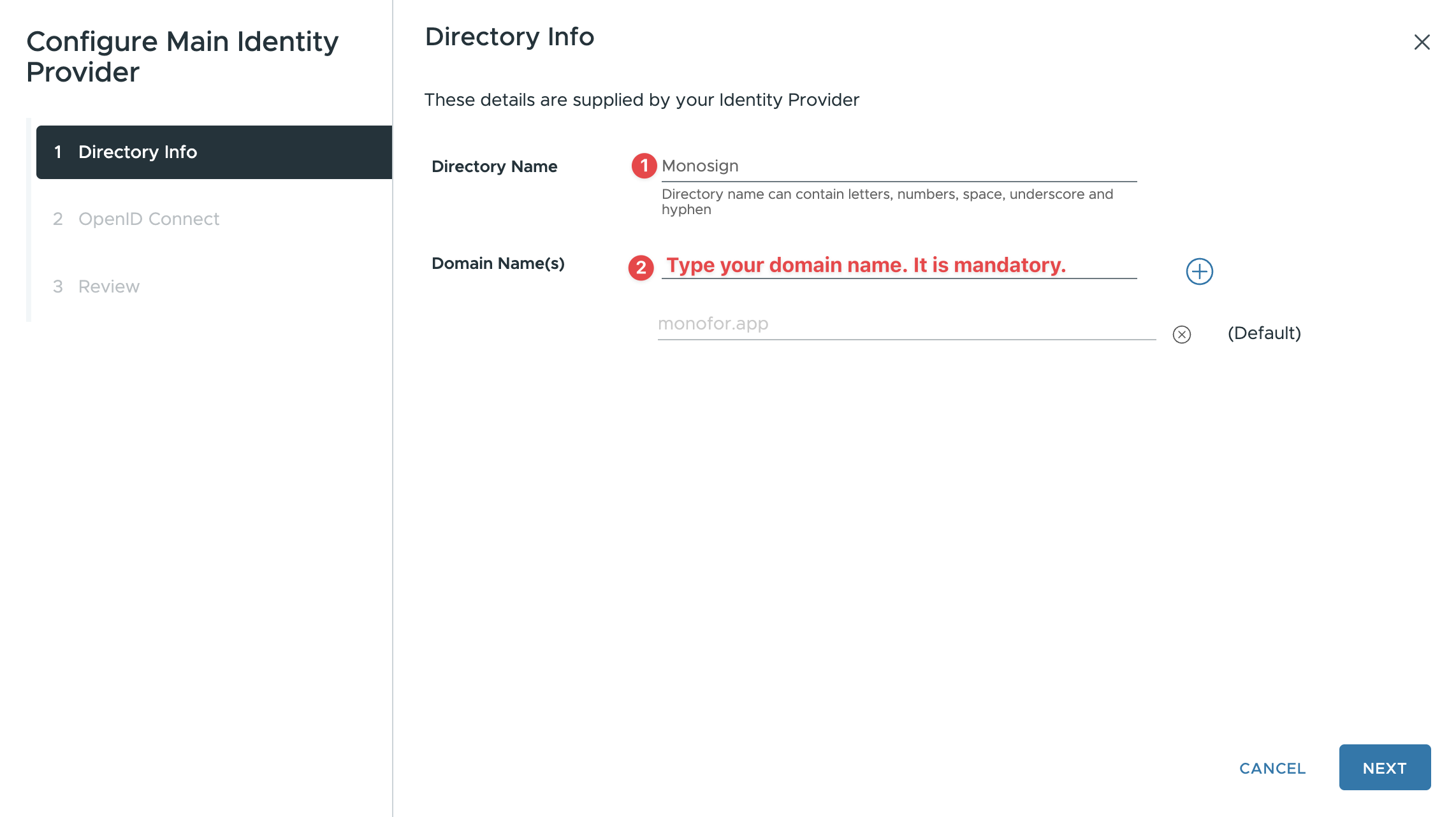

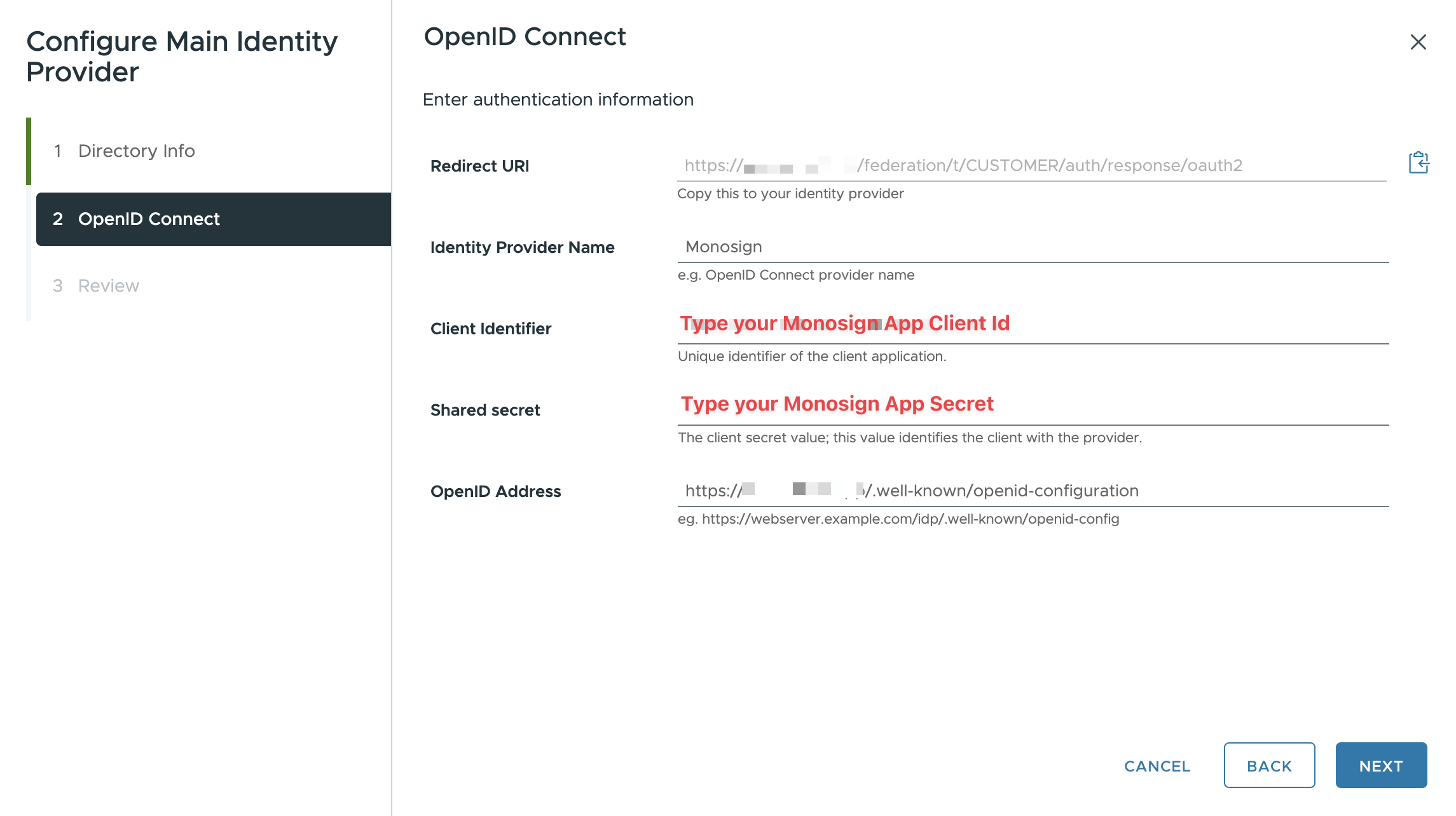

Please add your OIDC/OpenID settings to the application. The following information is needed for your configuration.

Now, go back to Monosign and give access to your users and try login.

3- Assign a user to the VMware vCenter vSphere Client application

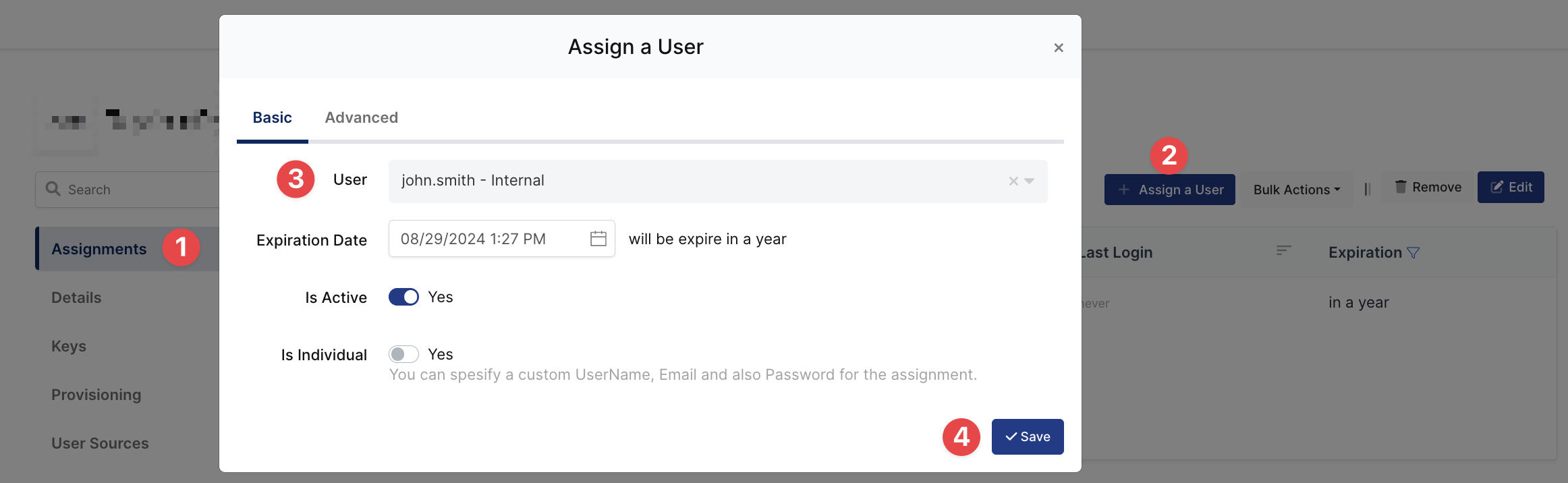

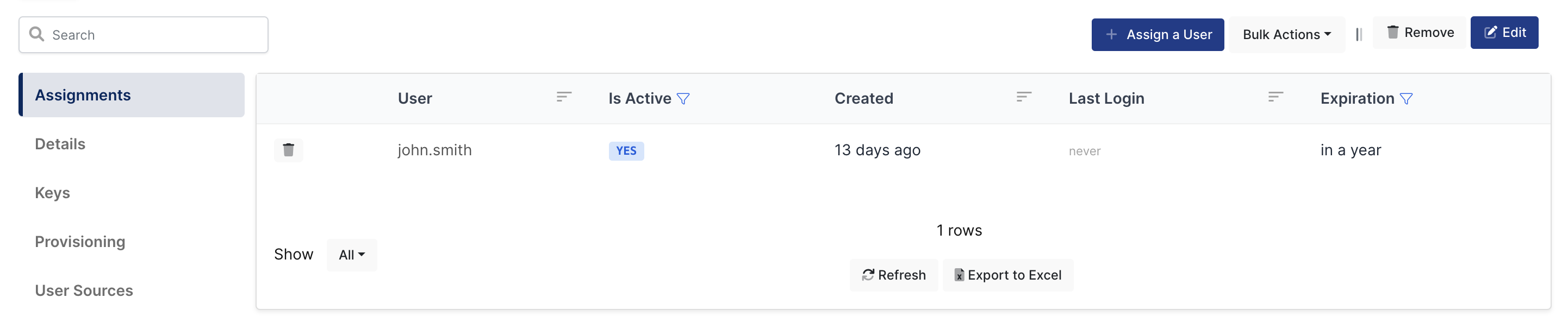

Please follow below instructions on how to assign a user to the application. In this example john.smith will assign to the application access.

4- Sign In Test

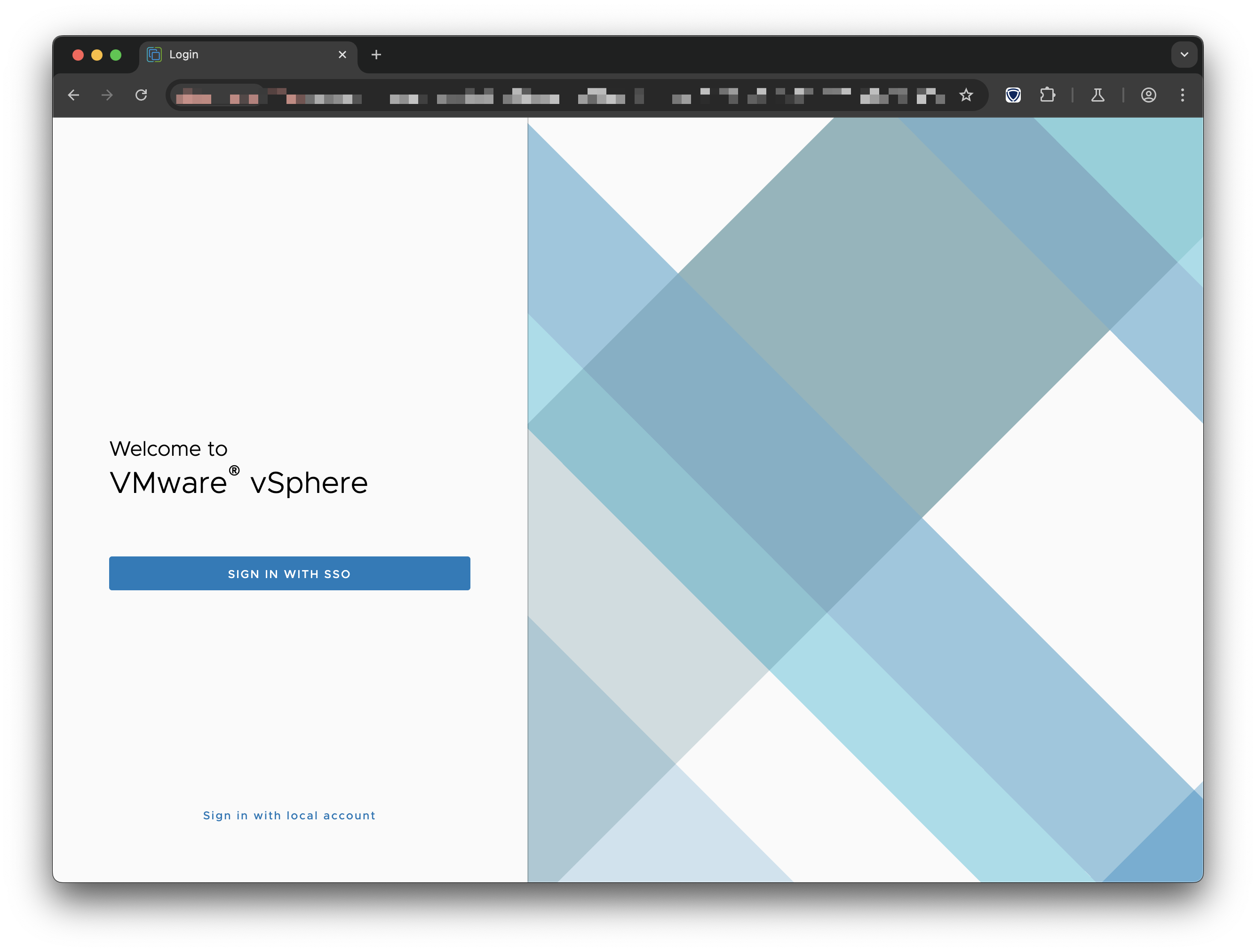

Now try login. Navigate to the VMware vCenter vSphere Client application. Click SIGN IN WITH SSO on the UI.

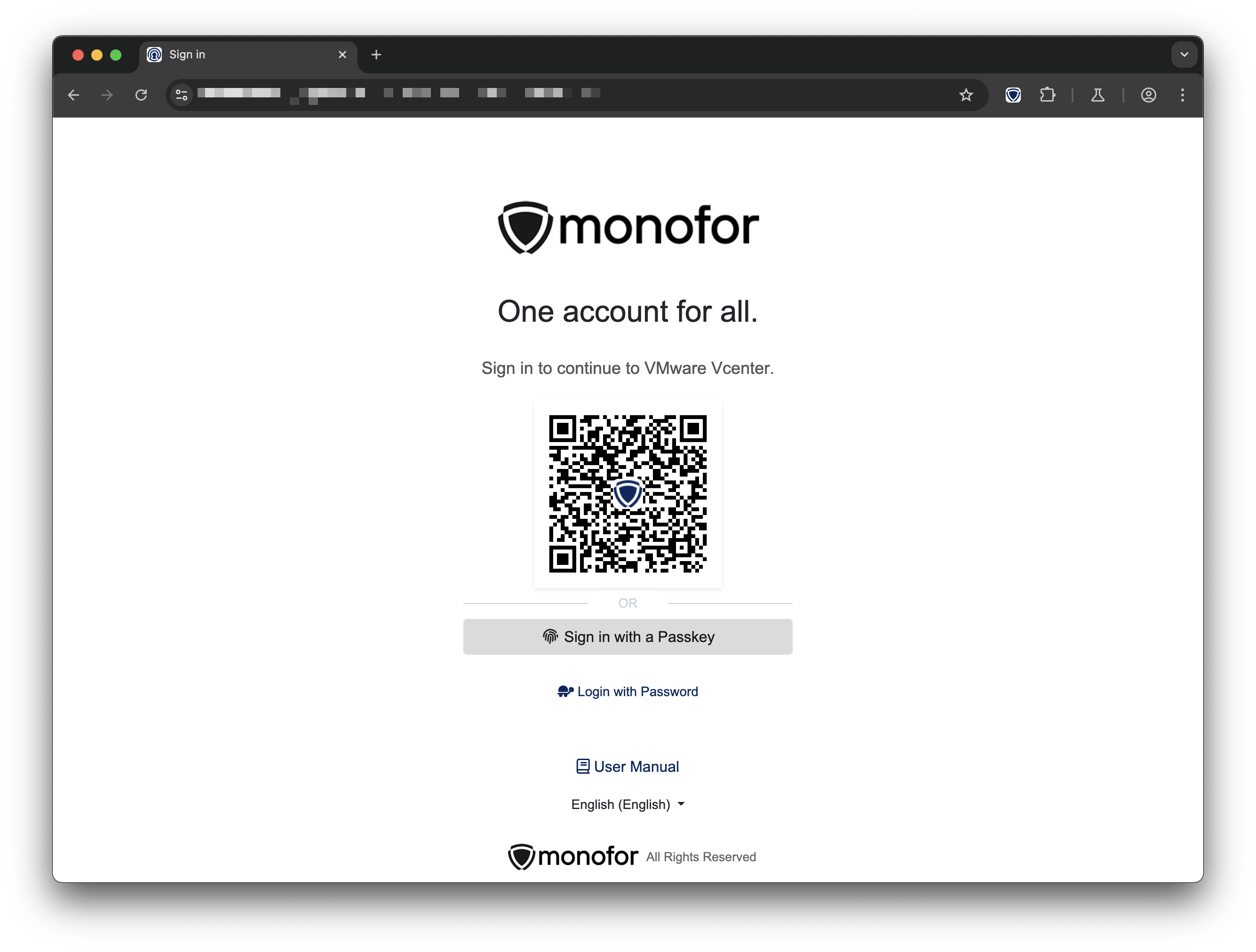

If everything is well configured, the page will be redirected to Monosign’s login page. It can be log in passwordless with QR code or type username and password.

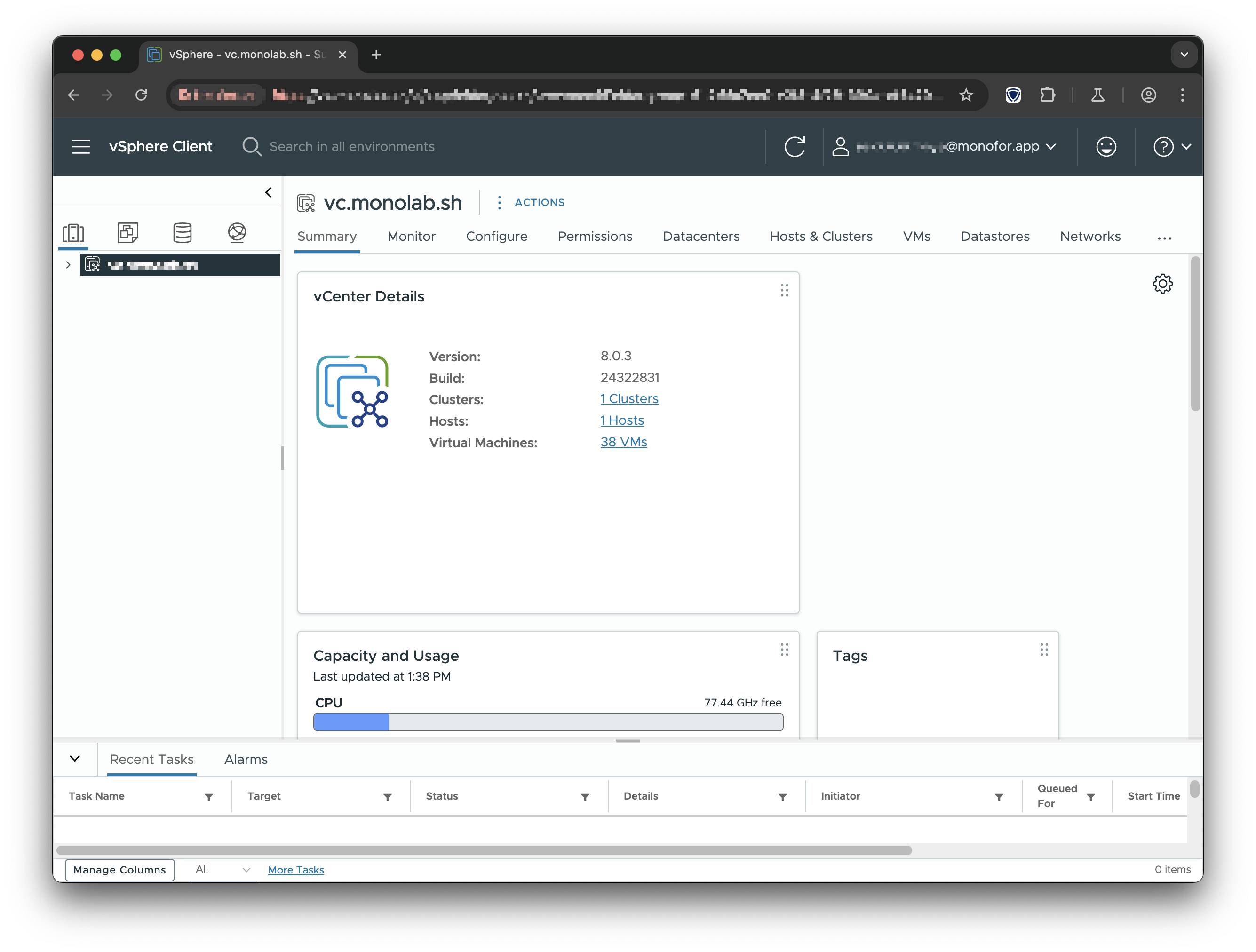

When the user logged in, the page will be redirected to the VMware vCenter vSphere Client page.
